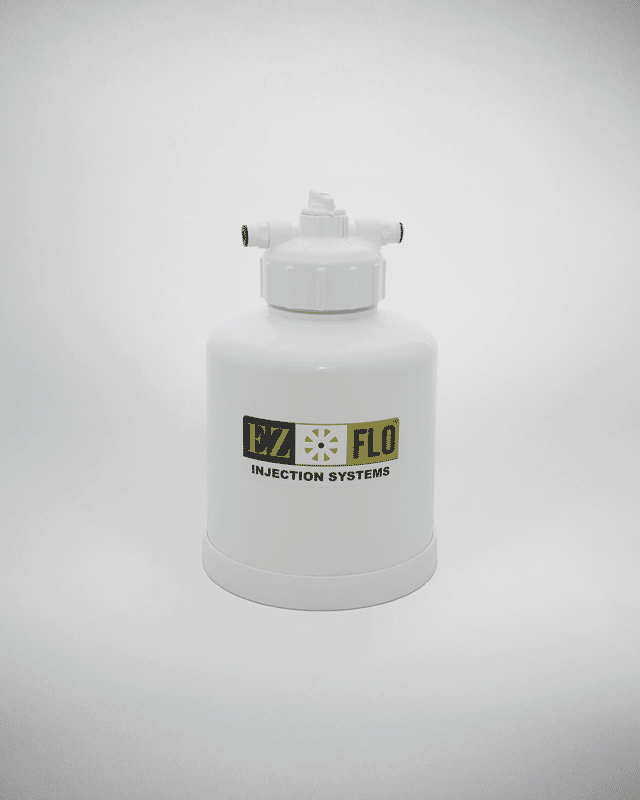

Ez-flo Ez FLO-1 1 Gallon Fertilizer Dispensing System

Product Description

The EZ-FLO EZ FLO-1 is a 1-gallon (3.8L) inline fertilizer and chemical dispensing system designed for irrigation and lawn care applications. The unit connects directly to a pressurized water line and meters liquid fertilizer, nutrients, or other water-soluble chemicals into the flow stream at a controlled rate. It includes the CBV-100 check and backflow valve, which protects the supply line from back-siphoning. Irrigation contractors and landscape professionals install this system as part of residential and light commercial irrigation setups to deliver consistent, automated chemical application without manual mixing.

The EZ FLO-1 is suited for residential lawn irrigation systems, garden drip lines, and light commercial landscape installations. It attaches inline on the mainline or zone supply line downstream of the backflow preventer. The included CBV-100 valve satisfies basic cross-connection control requirements at the point of injection. This system eliminates the need for separate hose-end sprayers or manual fertilizer application during regular irrigation cycles.

Key Features

• 1-gallon (3.8L) reservoir capacity for liquid fertilizer or water-soluble chemical concentrate

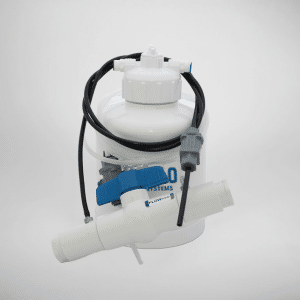

• Includes CBV-100 check and backflow valve for supply line protection
• Inline installation connects directly to standard pressurized irrigation mainlines
• Automated metering delivers consistent chemical application with each irrigation cycle
• Eliminates manual mixing and separate hose-end application steps

Compatibility

Designed as an inline dispensing unit for residential and light commercial pressurized irrigation systems. No specific compatible model numbers or system families were provided in the product data.

Installation Notes

Installation is performed by irrigation contractors or experienced landscape professionals familiar with pressurized water supply systems. Shut off the irrigation zone or main supply valve and relieve line pressure before cutting into the supply line for inline connection. Verify local plumbing and irrigation codes regarding chemical injection and cross-connection control requirements before installation. Always install the CBV-100 backflow valve as directed to maintain code compliance and prevent contamination of the potable or irrigation supply.

Technical Specifications

• Reservoir Capacity: 1 gallon (3.8L)
• Included Accessories: CBV-100 check and backflow valve
• Order Increment: 1

Standard Information

• Brand: EZ-FLO
• Manufacturer Part Number: EZ FLO-1
