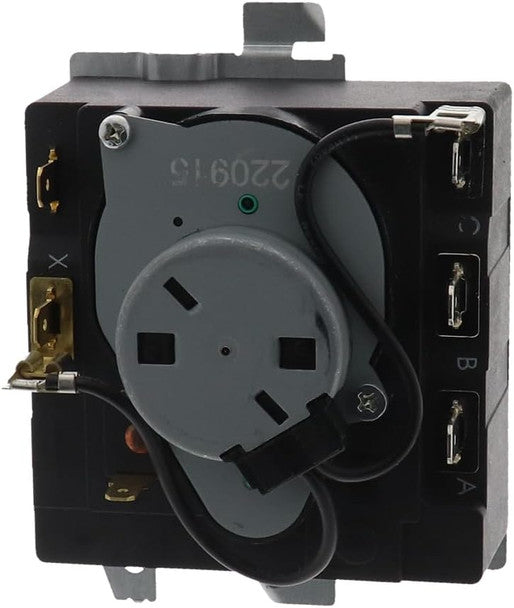

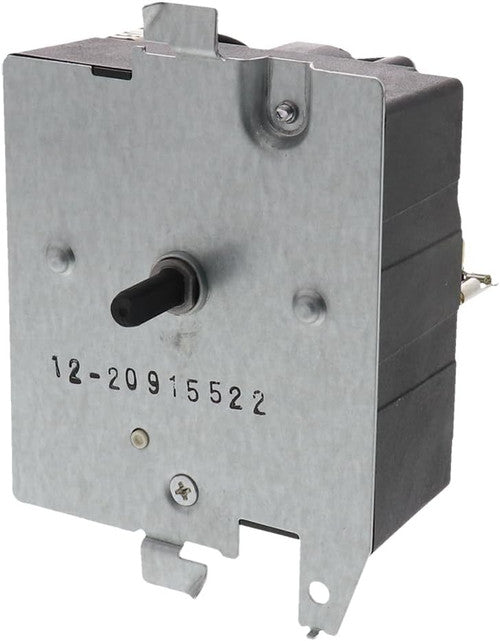

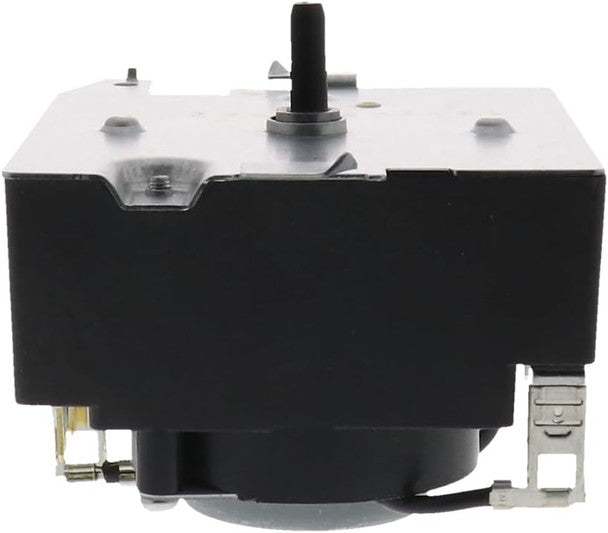

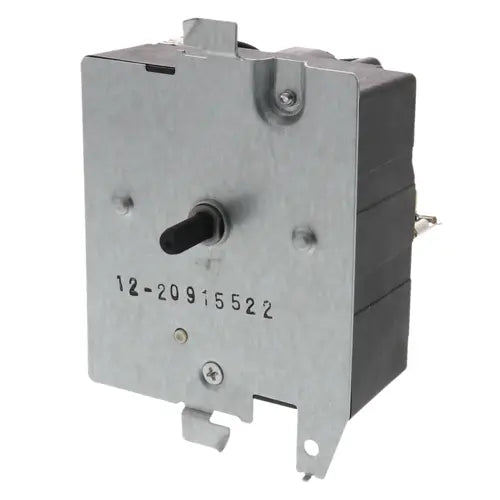

Exact Replacement Parts WE4M533 Dryer Timer 115 Vac (TMD1EM03)

Product Description

Exact Replacement Parts WE4M533 is a dryer timer assembly for GE dryers that regulates how long power is supplied to each setting and advances dryer cycles. It operates at 115 Vac / 60 Hz with a DM101 motor and 1/3 HP rating, and includes contacts rated 25 A at 250 Vac. The timer serves as a direct replacement for multiple GE OEM part numbers to restore timed cycle control.

• Controls cycle duration and power distribution to advance dryer settings and maintain timed cycles.
• Electrical rating 115 Vac / 60 Hz; motor DM101; horsepower 1/3 HP; contact rating 25 A @ 250 Vac; current rating 15/7.5 A.
• Direct-fit replacement for GE dryers; cross references include TMD1EM03, WE4M364, AP5780508, 3029574, PS8690648.

Product Highlights

Dryer timer assembly, 115 Vac / 60 Hz operation, DM101 motor, 25 A contact rating, GE OEM cross-reference compatibility.

Product Information

Standard Information

• Brand: EXACT REPLACEMENT PARTS
• Manufacturer Part Number: WE4M533

Technical Specifications

• Brand: Exact Replacement Parts
• MPN: WE4M533

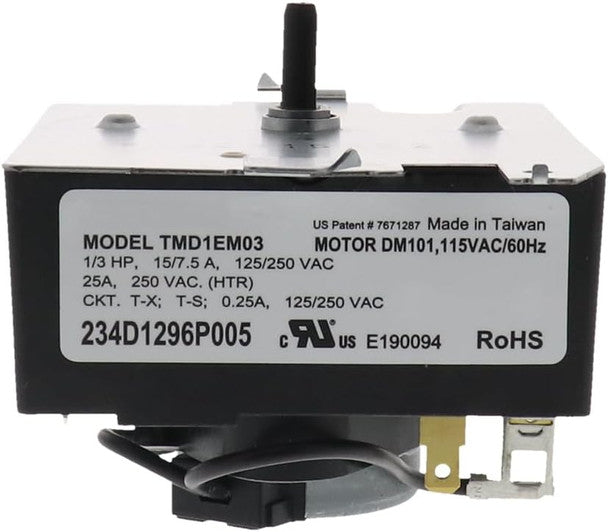

• Model: TMD1EM03
• Motor: DM101
• Input Voltage: 115 Vac
• Frequency: 60 Hz
• Horsepower: 1/3 HP (questionable - see notes)
• Current Rating: 15/7.5 A (likely line/contact ratings for different voltages)
• Voltage Rating: 125/250 Vac
• Contact Rating: 25 A @ 250 Vac
• Dimensions: 4 x 4 x 4 inches
• UPC: 840993040870
• OEM Number: GE
• Cross Reference: 234D1296P005, TMD1EM03, WE4M364, WE4M533-24PK, AP5780508, 3029574, PS8690648
• Condition: Brand New - Unused
