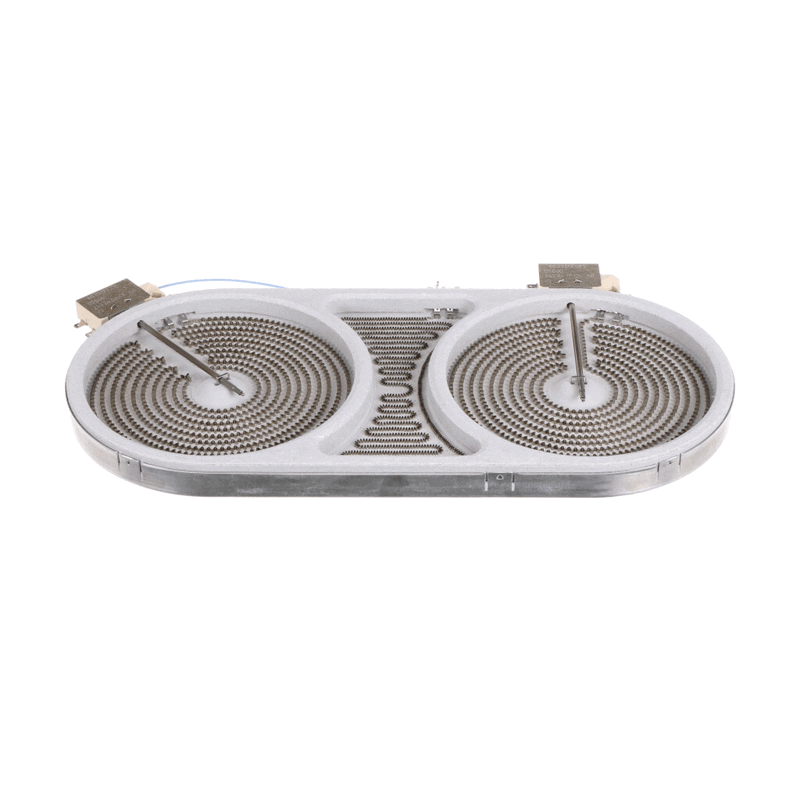

Exact Replacement Parts dg47-00072a Radiant Bridge Heater

Product Description

The EXACT REPLACEMENT PARTS dg47-00072a is a radiant bridge heater element rated at 240 volts AC, designed as a direct OEM-style replacement for compatible Samsung range and cooktop appliances. This component generates the focused radiant heat required for bridge burner zones, which combine two adjacent heating elements into a single expanded cooking surface. Installation is typically performed by licensed appliance technicians or experienced service professionals during range servicing or element replacement calls.

This heater element is suited for residential electric range and cooktop applications where a bridge heating zone is required. The bridge configuration allows two burner sections to operate as one continuous zone, accommodating larger cookware such as griddles and roasting pans. Technicians servicing Samsung electric ranges will encounter this part during element failure diagnostics and surface unit replacements.

Key Features

• Rated at 240 volts AC for standard residential electric range circuits
• Bridge-style radiant element supports expanded cooking zone operation
• OEM-style replacement designed to match original fit and function
• Direct substitution reduces diagnostic and installation time in the field

Compatibility

Designed as an OEM-style replacement radiant bridge heater element for compatible Samsung electric ranges and cooktops equipped with bridge burner zones. Refer to the appliance model and parts documentation to confirm fitment before ordering.

Installation Notes

Installation should be performed by a qualified appliance repair technician. Always disconnect the range from its power source and verify zero voltage at the terminal block before removing any surface heating components. Surface unit elements may be retained by mounting clips or screws depending on range configuration. Follow all applicable local electrical codes during service.
