EWC 16X16ND ND Series Motorized Damper

Product Description

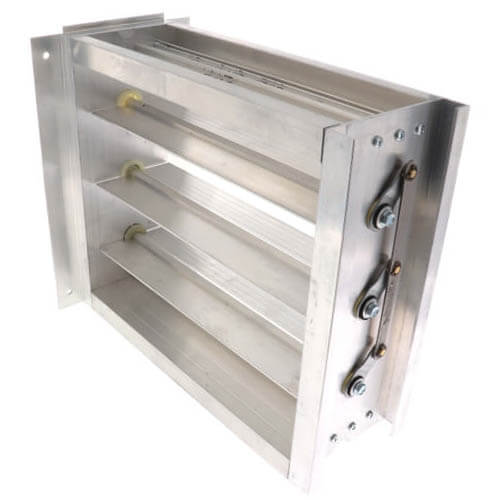

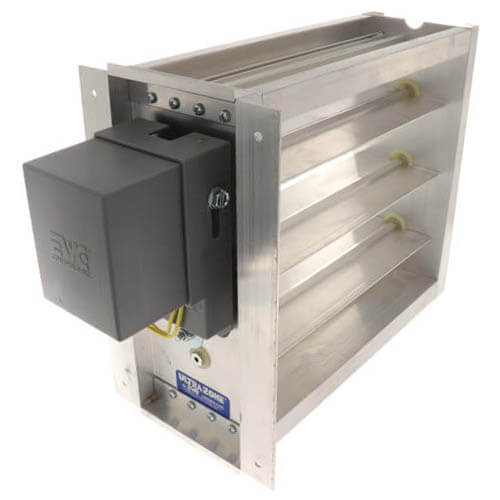

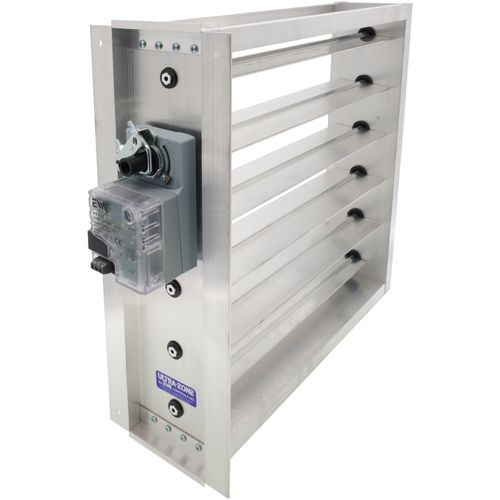

The EWC 16X16ND is a motorized damper ideal for air quality management in various settings. This device features a sturdy frame made from extruded aluminum, ensuring durability. It operates quietly due to its nylon bushings. The damper requires a 24VAC power connection and offers both power open/power close and floating function options.

• Features a 3-wire hook-up for easy installation.
• Adjustable end-stop for controlling leakage.
• Motor actuator provides 18 inch-lbs of torque.

Product Highlights

This motorized damper is suited for effective airflow control and optimal air quality in HVAC systems.

Product Information

Standard Information

• Brand: EWC Controls
• MPN: 16X16ND

Technical Specifications

• Product Type: ND Motorized Damper
• Size: 16 x 16 inches
• Shape: Rectangular
• Voltage: 24 VAC
• Application: Air Quality
• Motor Mount: Side
• Weight: 8.50 lbs
• Dimensions (L x W x H): 18.00 inches x 7.00 inches x 22.00 inches
• Amps: 1.5
• Composition: Aluminum
• Cycle/Hertz: 50/60 Hz
• Damper Type: Zone
• Mounting: Face plate
• Network Zoning: Yes
• Phase: Single
• Ambient Temperature Range: -20°F to 160°F (-28.89°C to 71.11°C)
• Approvals: UL Listed; UL Recognized
• Maximum Temperature: 185°F (85°C)
• Motorized: Yes
• Spring Return: Non-Spring Return
