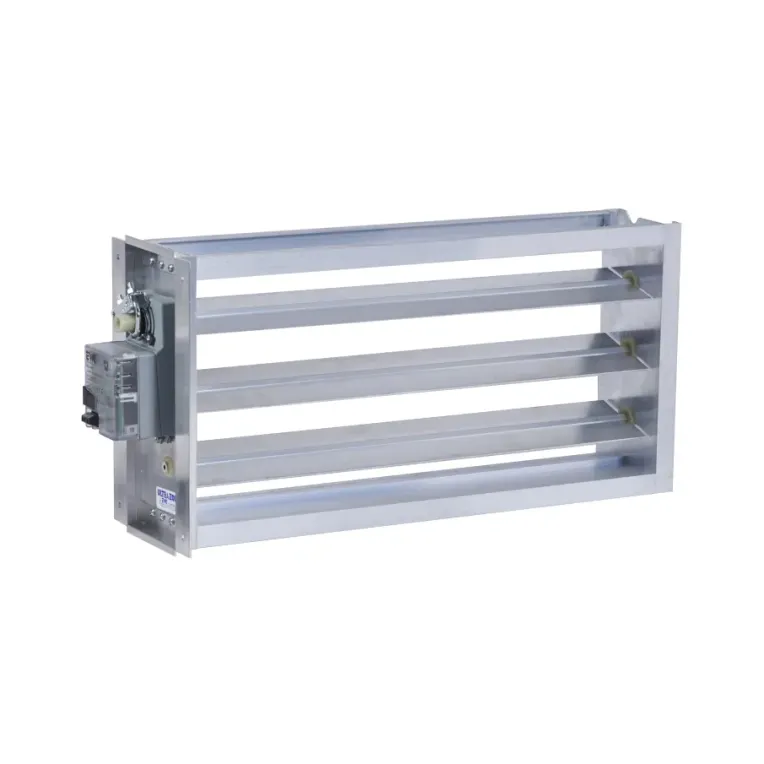

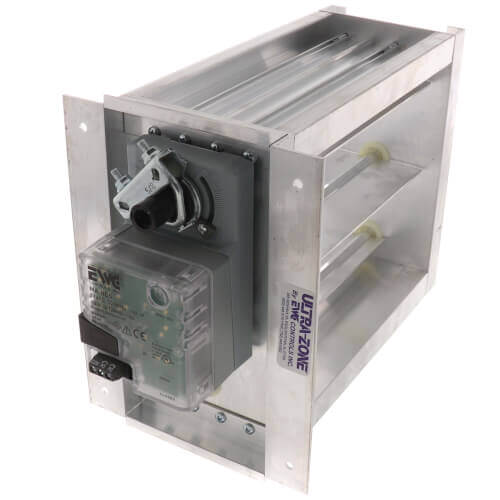

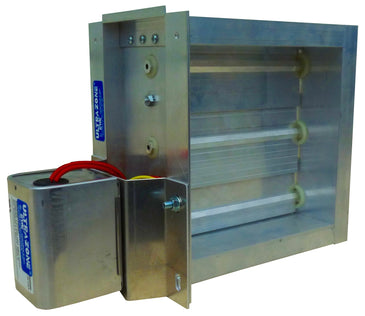

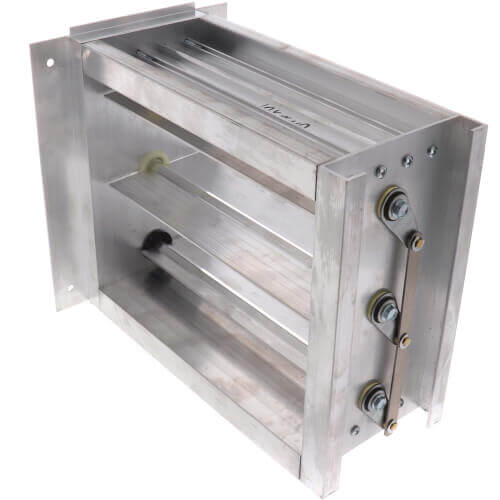

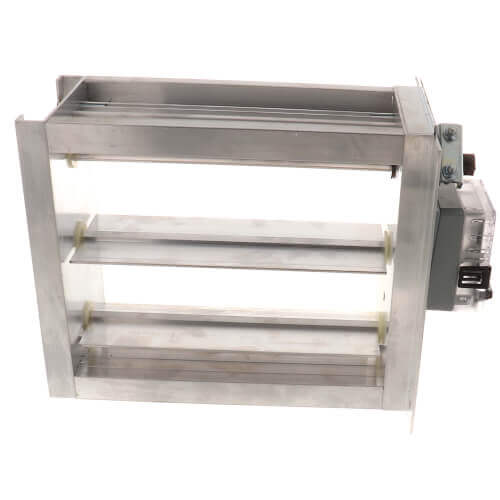

EWC 14X14ND Motorized Damper 24V 14 X 14

Product Description

The EWC 14X14ND is a motorized damper that improves air quality in various spaces. It is built with a durable frame made from extruded aluminum and operates quietly with nylon bearings. The design includes parallel blades that overlap for effective airflow management. This damper is designed to work with 24V power systems and offers both power open and power close functionality. The unit has a straightforward three-wire connection for easy installation. It also features an integrated end-stop adjustment to allow for controlled relief air when the damper is closed.

• Features a three-wire connection for easy setup.
• Equipped with LED indicators to display operation status.
• Adjustable end-stop allows for air relief.

Product Highlights

Product Information

Standard Information

• Manufacturer: EWC Controls
• Product Type: ND Motorized Damper

Technical Specifications

• Size: 14 X 14
• Voltage: 24V
• Shape: Rectangular
• Wires to Motor: 3
• Motor Mount: Side
• Application: Air Quality
• Dimensions (L x W x H): 14.00 inches x 7.00 inches x 21.00 inches
