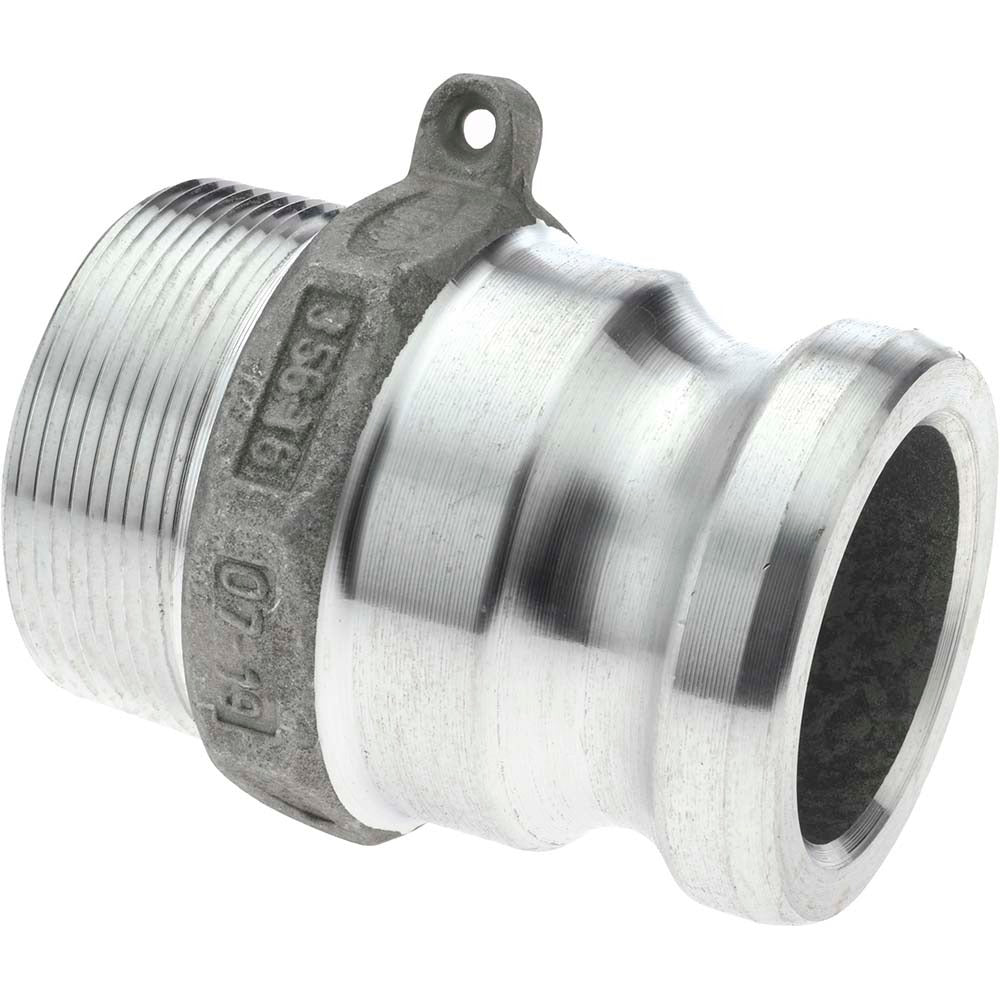

Ever-tite 320FAL Cam Groove Coupling 2 in Male Mnpt Aluminum

Product Description

The EVER-TITE COUPLING PRODUCTS 320FAL is a Part F cam and groove coupling designed for quick-connect fluid transfer applications. Built from aluminum, this male adapter features a 2-inch MNPT (male national pipe thread) end that mates with a standard cam and groove female coupler. It carries a maximum rated pressure of 250 psi, making it suitable for a broad range of liquid and dry-bulk transfer tasks. Licensed plumbers, pipefitters, and industrial maintenance technicians commonly install cam groove couplings where fast, tool-free hose connections are required.

This coupling is used in agricultural irrigation, industrial fluid transfer, tank truck loading and unloading, and general construction site water management. The Part F designation identifies it as a male adapter style, meaning one end threads into a female-threaded port or fitting while the other end accepts a standard cam and groove female coupler. Its aluminum construction keeps weight low while delivering adequate corrosion resistance for water, fuels, and many chemical media at moderate pressures.

Key Features

• Part F male adapter style with 2-inch MNPT thread for direct pipe or manifold installation
• 250 psi maximum working pressure suits a wide range of fluid transfer applications
• Aluminum construction provides a good strength-to-weight ratio and corrosion resistance
• Cam and groove design enables fast, tool-free hose connection and disconnection
• UNSPSC code 40141734 for streamlined procurement and cataloging

Compatibility

Designed as an OEM-style replacement or direct-fit addition compatible with standard cam and groove (cam-lock) female couplers conforming to MIL-C-27487 and ANSI/ASME B1.20.1 thread specifications in 2-inch size.

Installation Notes

Installation should be performed by a qualified pipefitter or plumber following applicable IPC and facility safety guidelines. Depressurize and drain the system completely before removing any existing fitting or installing this coupling. Apply an appropriate thread sealant or PTFE tape to the MNPT threads and torque the connection hand-tight plus a standard pipe-thread turn, taking care not to cross-thread. Verify all cam arms are fully locked and the system is pressure-tested at or below the rated 250 psi maximum before returning to service.
