Ever-tite 307CSS Cam Groove Coupling Part C Stainless Steel

Product Description

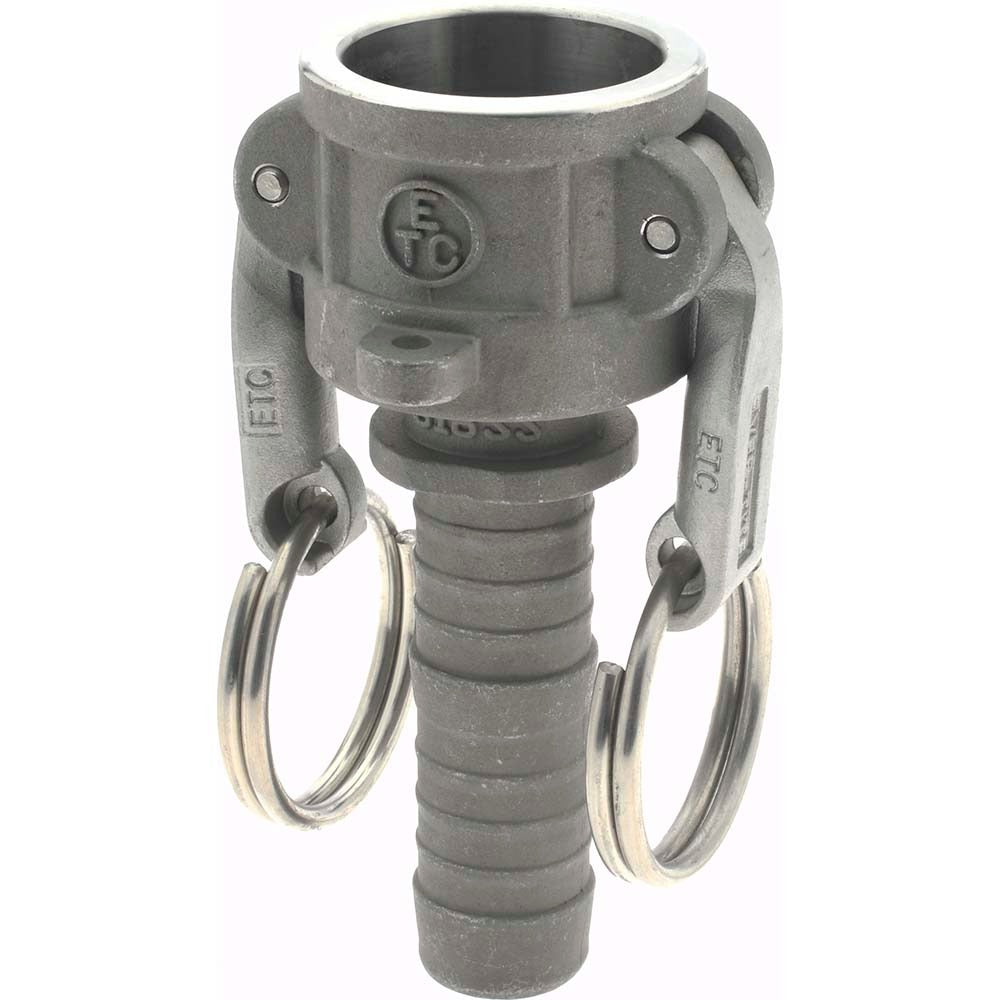

The EVER-TITE COUPLING PRODUCTS 307CSS is a Part C cam groove coupling designed for fast, tool-free connection in fluid transfer applications. Constructed from stainless steel, it features a female coupler with a hose shank end, allowing direct attachment to hose assemblies. Rated to a maximum working pressure of 250 psi, this coupling suits demanding industrial and trade environments where corrosion resistance and pressure integrity are required. Licensed plumbers, pipefitters, and industrial maintenance techs are the typical installers.

This coupling fits into systems where cam and groove quick-disconnect fittings are standard, including liquid transfer lines, wash-down stations, chemical handling setups, and general fluid conveyance in commercial and industrial settings. The female coupler body accepts a male adapter on the mating end, and the hose shank tail connects directly to compatible hose via clamps or crimps. Its stainless steel construction makes it suitable for corrosive media and sanitary applications.

Key Features

• Part C cam groove configuration: female coupler body with hose shank tail
• Stainless steel construction for corrosion resistance and durability
• 250 psi maximum working pressure rating
• Tool-free cam and groove connection for fast coupling and decoupling
• UNSPSC Code 40141734 for procurement and catalog classification

Compatibility

Designed as an OEM-style cam groove Part C female coupler hose shank fitting compatible with standard cam and groove male adapters following MIL-C-27487 and ANSI/ASME B1.20.1 dimensional standards typical of this coupling style.

Installation Notes

Installation should be performed by a qualified pipefitter or plumber familiar with cam and groove coupling systems. Depressurize and drain the line completely before disconnecting or installing any coupling. Secure the hose shank tail to the hose using appropriately rated clamps or crimp ferrules, and verify the cam arms are fully engaged and locked before pressurizing the system. Do not exceed the 250 psi maximum working pressure rating.
