Ever-tite 305EBR Cam Groove Coupling Part E Brass 350 Psi

Product Description

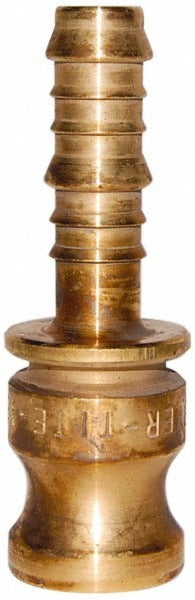

The EVER-TITE COUPLING PRODUCTS 305EBR is a Part E cam and groove coupling configured as a male adapter with a hose shank end, manufactured from solid brass. Cam and groove couplings - also called cam-lock fittings - allow fast, tool-free connection and disconnection of hoses and transfer lines on fluid handling systems. The 305EBR is rated to a maximum working pressure of 350 psi, making it suitable for demanding liquid transfer applications in industrial, agricultural, and commercial settings. At 0.215 pounds, the fitting is compact and lightweight while delivering the corrosion resistance and durability expected from brass construction.

This fitting is used wherever quick-connect hose assemblies are required, including pump discharge lines, tank truck connections, chemical transfer systems, and irrigation manifolds. The hose shank end accepts standard hose and is secured with a clamp or crimp fitting in the field. The cam groove interface mates with a standard Part C female coupler. It is commonly installed by plumbers, pipefitters, and fluid transfer technicians in both residential and light commercial applications.

Key Features

• Part E configuration: male adapter with hose shank for direct hose attachment
• 350 psi maximum working pressure for demanding transfer service
• Brass construction provides corrosion resistance for water, petroleum, and compatible chemical service
• Cam and groove design allows rapid tool-free connection and disconnection
• Lightweight at 0.215 pounds for easy handling and installation
• UNSPSC Code 40141734 for procurement and catalog classification

Compatibility

Designed as an OEM-style cam and groove fitting that mates with standard Part C female cam groove couplers in industrial and commercial hose assembly systems.

Installation Notes

Installation is performed by plumbers, pipefitters, or fluid transfer technicians following applicable codes such as IPC and site-specific safety requirements. Before servicing or connecting fittings, relieve all system pressure and isolate the line from its fluid source. Secure the hose shank end with appropriately rated hose clamps or crimp ferrules sized for the hose ID. Inspect the cam arms and gasket seat on the mating female coupler before assembly to ensure a leak-free connection.
