Bohn BBM16AG Back Bar Reach-In Unit Cooler 1,600 BTU (S-type Mounting Angle) BBM16AG

Product Description

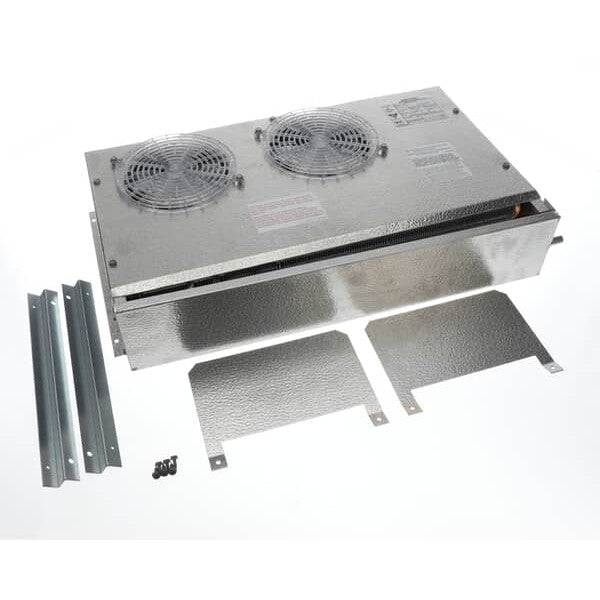

Bohn BBM16AG is a 1,600 Btu/hr back bar reach-in unit cooler for medium-temperature applications, operating at 115 VAC and using R-22 refrigerant. The compact wall-mounted evaporator draws air from the bottom and discharges out the front, employs two thermally protected fans, and includes an optional field-formable air deflector and an S-type mounting angle to position the unit 3/4 in off the wall for improved circulation.

• Compact wall-mounted reach-in design with S-type mounting angle and optional air deflector
• Coils with copper tubes and aluminum fins; molded polycarbonate fan guards and thermally protected, permanently lubricated motors
• 115 VAC single-phase operation, R-22 refrigerant, 1,600 Btu/hr, two fans, sweat-type liquid and suction connections

Product Highlights

Medium-temperature 1,600 Btu/hr back bar reach-in evaporator with dual fans, air defrost, and sweat-type refrigerant connections.

Product Information

Standard Information

• Brand: BOHN
• Manufacturer Part Number: BBM16AG
• Country of Origin: USA
