Euchner 100183 Cordsets Cable, M12 w/flying leads, 5 meter

Brand: EUCHNER
SKU: 100183
Availability: In Stock

Ships same day if ordered by 12 pm
$73.74
$73.74
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

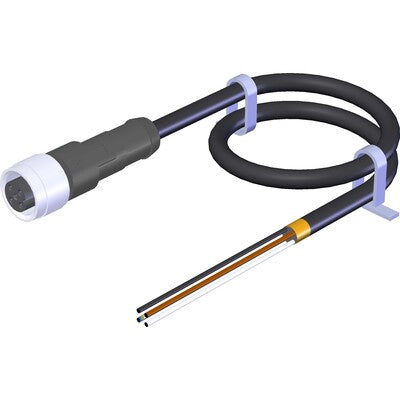

The EUCHNER 100183 cordset is a cable with an M12 connector and flying leads, with a length of 5 meters. This flame-retardant cable is moderately UV-resistant and DGUV test certified. It features a 5-pin M12 female connector and sheath-stripped bare end flying leads, suitable for various industrial applications.

  • Features a 5-pin M12 female connector with flying leads
  • Cable length of 5 meters
  • Flame-retardant and moderately UV-resistant

Product Highlights

This EUCHNER cordset is ideal for connecting safety switches and other devices in industrial environments, ensuring reliable and secure connections.

Product Information

Standard Information

  • Brand: EUCHNER
  • Manufacturer Part Number: 100183
  • Country of Origin: Germany
Technical Specifications
Manufacturer Part Number
100183
Manufacturer
Euchner
Family Series
Euchner Cordsets
Description
Cable, M12 w/FLYING LEADS, 5 Meter
Cable Type
PVC
Number of Pins
5
Connection Type
M12 Plug
Connection Configuration
Female to Flying Leads
Color
Black
Length
5 m
Connector Class
Micro (M12)
Number of Wires
1
Illuminated
No
Status Indicator
None
Brand
Euchner
UNSPSC
39121461
MPN
100183
Model
C-M12F05-05X034PV05,0-MA-100183
Primary brand
EUCHNER
Main function
Cable
Product series / family name
Safety switches > Transponder-coded safety switches with guard locking > CTS > Accessories
Functions
Flame-retardant straight single-ended cable / cordset
Design
moderately UV-resistant
Rated current
4A (at 25°C; nom.)
Rated Voltage (DC)
60Vdc 1500Vdc (surge voltage)
Diameter
5.9mm diam. sheath
Cross-section
5 x 0.34mm2 conductors
Degree of protection
IP67
Material
PVC sheath Cu flexible wire bare end Nickel-plated CuZn plug-lock TPU molded connector(s)
Ambient air temperature for operation
(in dynamic applications) -5°C...+80 °C (in static applications) -25°C...+80 °C
Customs Tariff Number
HTS 85444290900
Order code / Manufacturer SKU
100183
Manufacturer product status
Commercialized
Equivalent to
C-M12F05-05X034PV05.0-MA-100183
EAN code
4047048006300
Compliant with standard(s)
DGUV test certified UL listed cULus listed UL 2464 UL 2238 CAN/CSA C22.2 No. 182.3 IEC/EN 60664-1 IEC/EN 63000 (2018) RoHS
Bending radius
88.5mm minimum (in dynamic applications) 29.5mm minimum (in static applications)
Degree of pollution
3 (according EN 60664-1)
Part #
C-M12F05-05X034PV05,0-MA-100183
Category
Electrical Cable/Wire
