Esab 9-1775 Plasma Cutter Electrode Tungsten Thermal Dynamics

Product Description

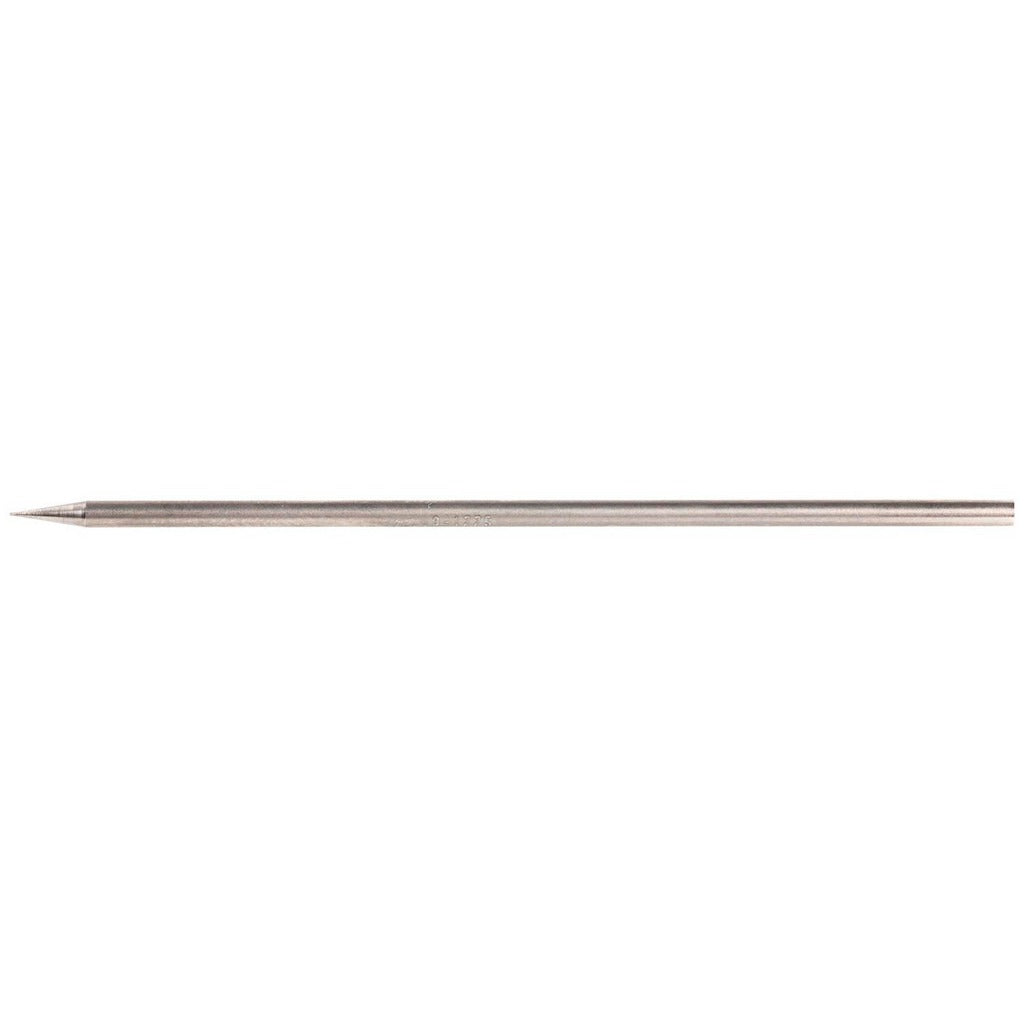

The ESAB 9-1775 is a tungsten electrode designed for plasma cutting torches. Electrodes are consumable components that carry the pilot arc current inside the torch body, enabling the ionized gas column that cuts through conductive metal. This electrode measures 3.4 inches in overall length and approximately 0.097 inches (3/32 inch) in overall diameter, making it a compact, precision-fit consumable. It is manufactured from tungsten, a material chosen for its high melting point and arc durability. Replacement of worn electrodes is a routine maintenance task performed by welding and cutting professionals to maintain cut quality and protect the torch body from damage.

This electrode is intended for use with Thermal Dynamics plasma cutting torches. It is suited for shops, fabrication facilities, and field cutting operations where Thermal Dynamics equipment is in service. Electrodes of this type are replaced when the emissive insert shows excessive wear, typically indicated by a pit depth that exceeds manufacturer service limits. Regular inspection and timely replacement help prevent torch body damage and maintain consistent arc starting performance across a range of metal types and thicknesses.

Key Features

• Tungsten construction for high-temperature arc durability
• Overall length of 3.4 inches for precise torch-body fitment
• Overall diameter of 3/32 inch (approximately 0.097 inches) for compatible torch bores
• Designed as a direct replacement consumable for Thermal Dynamics plasma torches
• Sold individually; minimum order quantity is 5 units

Compatibility

Designed for use with Thermal Dynamics plasma cutting torches, as specified by the manufacturer. Verify torch model and consumable part number against your torch documentation before installation.

Installation Notes

Electrode replacement is performed by trained welding and cutting equipment technicians. Always power down the plasma cutter and disconnect it from its power source before accessing the torch head. Use the appropriate torch wrench or spanner to avoid cross-threading or overtightening the consumable stack. Inspect the shield cup, nozzle, and swirl ring during each electrode change and replace any components showing wear to maintain system performance.
