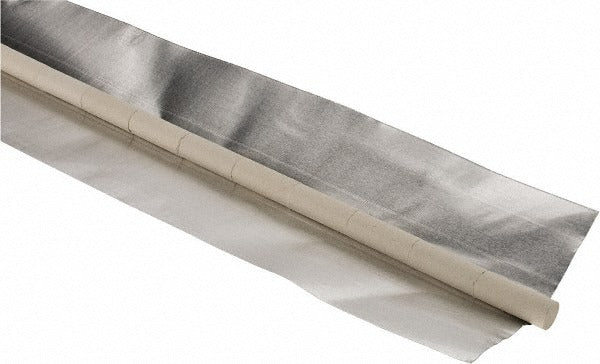

Esab 693000127 Round Ceramic Weld Backing 1 in 36 Ft

Product Description

The ESAB 693000127 is a round ceramic weld backing designed to support single-sided welding operations by providing a stable, heat-resistant backing surface at the root of the weld joint. Each piece measures 1 inch in length with a 3/8 inch diameter. Ceramic backing eliminates the need for back-gouging and back-welding on many joint configurations, reducing labor time and improving root pass consistency. This product is used by certified welders and welding contractors across structural, fabrication, and pipe welding applications where access to the back side of the joint is limited or impossible.

Round ceramic weld backing tiles are commonly used in structural steel fabrication, pressure vessel work, shipbuilding, and heavy equipment manufacturing. They are suited for butt joints and groove welds where a clean, uniform root bead is required from one side only. The backing holds molten weld metal in place during the root pass, helping to prevent burn-through and producing a smooth, consistent backside bead profile. Each box contains 36 packaging feet of backing product.

Key Features

• Round profile backing supports single-sided groove and butt weld applications
• Ceramic construction withstands high weld pool temperatures without burning through
• 1 inch length per piece with 3/8 inch diameter for precise root joint fitment
• Eliminates back-gouging on eligible joint configurations, reducing rework time
• 36 packaging feet per box provides job-site-ready supply for extended runs

Compatibility

Designed as an OEM-style ceramic weld backing for single-sided groove weld applications in structural fabrication, pipe, and plate welding where round-profile backing geometry is required.

Installation Notes

Ceramic weld backing is applied by qualified welders or welding fabricators following the applicable Welding Procedure Specification (WPS). Ensure the joint surfaces are clean, dry, and free of mill scale, oil, or moisture before placing backing. Back the ceramic firmly against the root opening to prevent gaps that could cause weld metal leakage. Follow applicable AWS, ASME, or project-specific code requirements for joint preparation, preheat, and root pass parameters.
