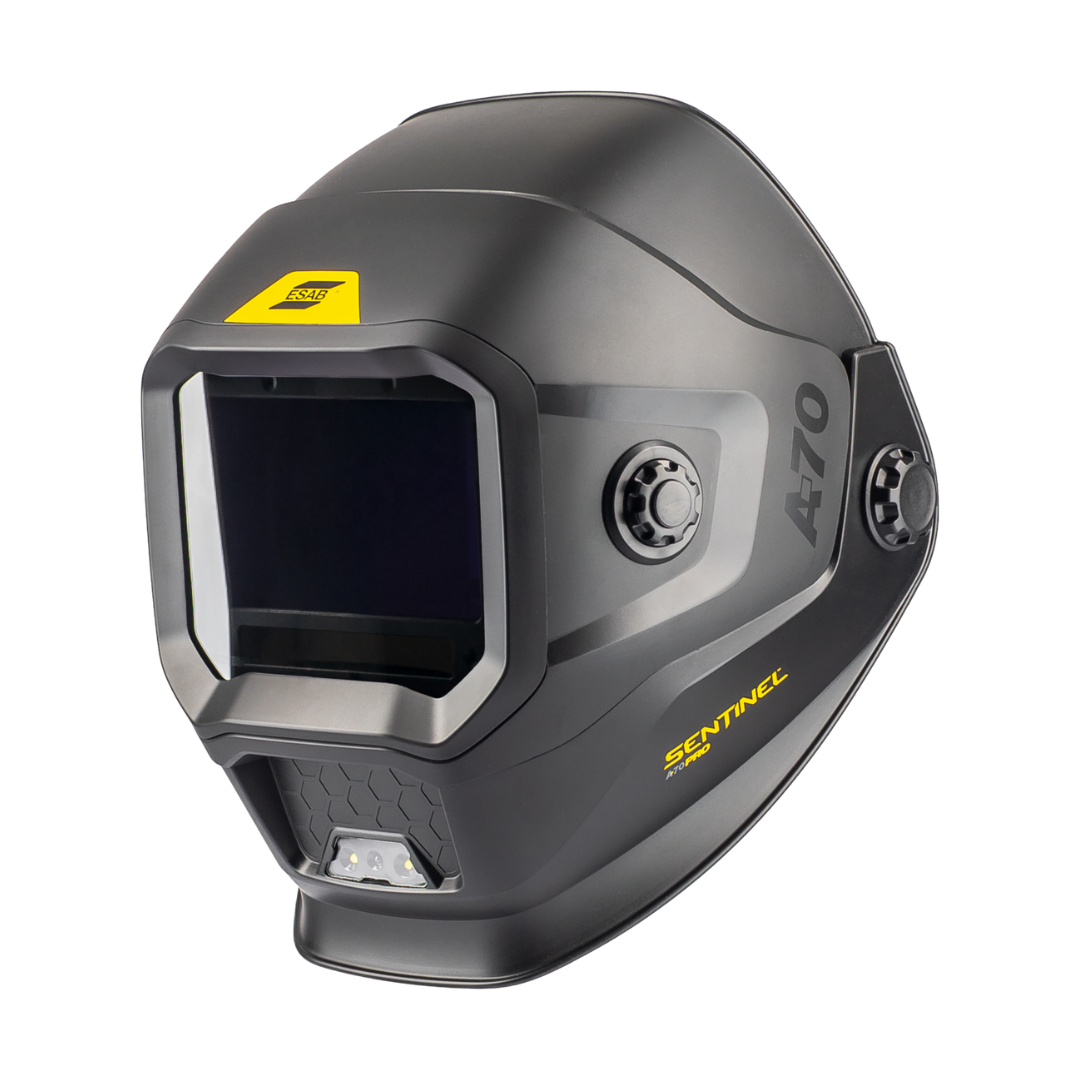

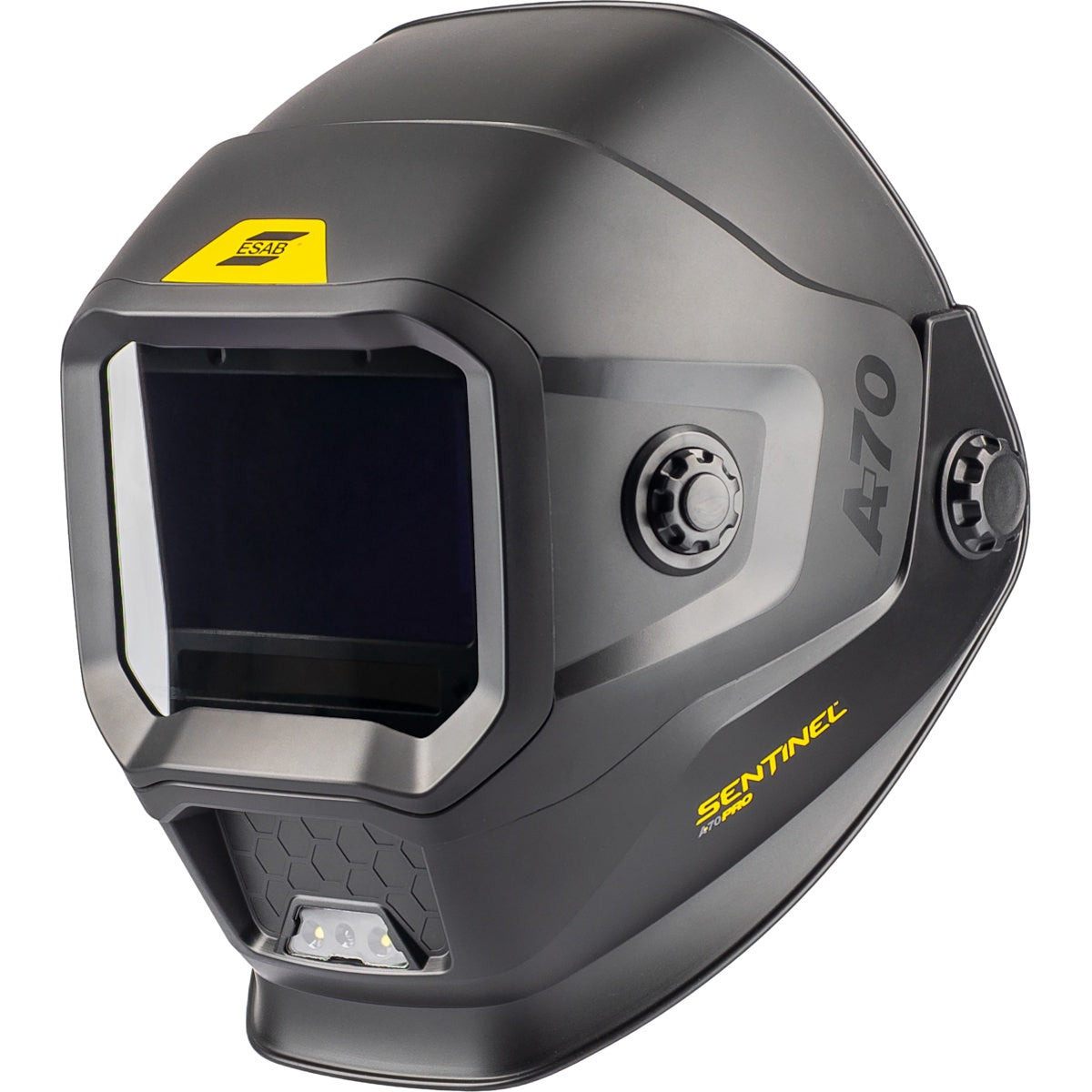

The ESAB 0700900700 Sentinel A70 Pro is a flip-up auto-darkening welding helmet engineered for heavy industrial use. It provides a large 123 x 75 mm ADF with a 3/5-13 variable shade range, digital controls with 10-step delay and sensitivity, and a removable flip-ADF for welding-to-grind transitions. The helmet includes a 50-lumen LED work light, rechargeable USB-C battery and Bluetooth connectivity, plus an oversized grinding shield and flame-resistant head and chest coverings.
Large 123 x 75 mm ADF with shade range 3/5-13 adjustable in 0.5 increments and 1/25,000 s switching speed

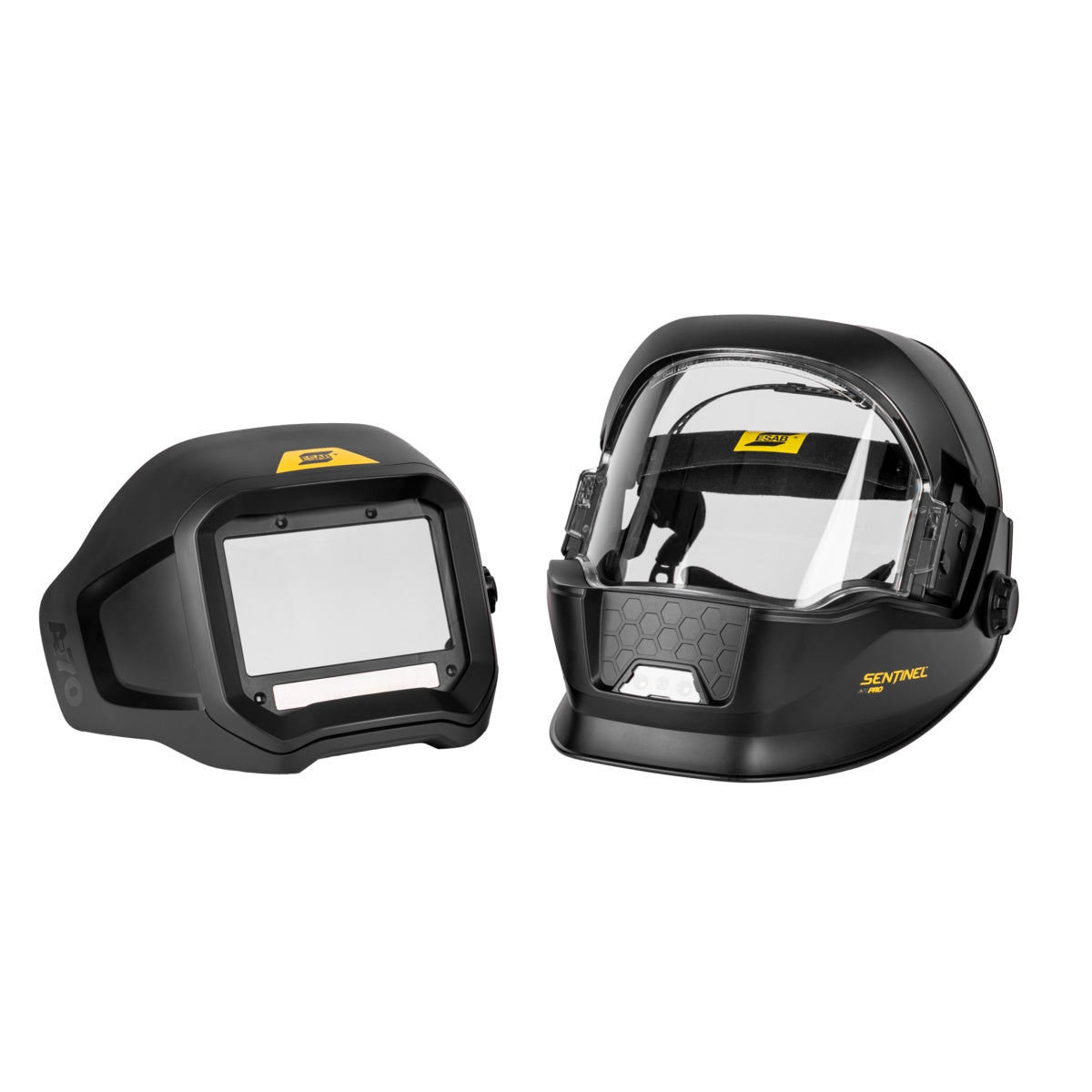

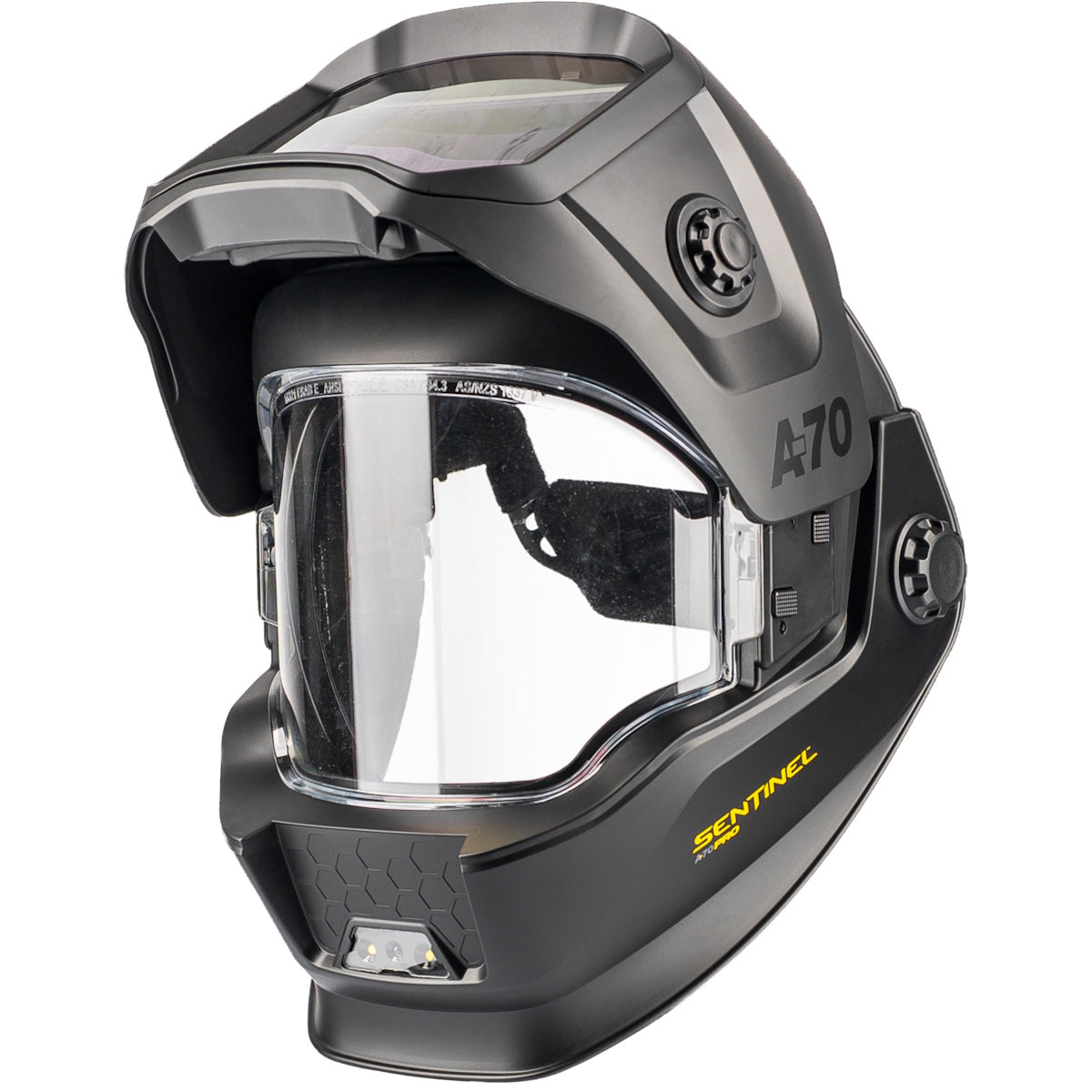

Removable flip-ADF and oversized 150 x 190 mm grinding face shield for weld-to-grind transitions
Fully digital controls with 10-step delay and sensitivity, rechargeable lithium battery (USB-C) and Bluetooth compatibility
Product Highlights
Large ADF, flip-up removable ADF, 50-lumen LED work light, USB-C rechargeable battery, Bluetooth connectivity
Product Information
Standard Information
Brand: ESAB
Manufacturer Part Number: 0700900700
Country of Origin: China
Technical Specifications
Brand
ESAB
Manufacturer Part Number (MPN)
0700900700
Model
Sentinel A70 Pro
Series
Sentinel
Viewing area (ADF)
123 x 75 mm (4.8 x 3 in.)
Shade range
3/5-13 (adjustable in 0.5 increments)
Number of arc sensors
4
Lens switching speed
1/25,000 s (light to dark)
Delay and sensitivity
10-step delay and sensitivity adjustment
Grind shield size
150 x 190 mm (5.9 x 7.625 in.)
Work light
50-lumen LED
Battery
Rechargeable lithium battery
Charging
USB-C charging
Connectivity
Bluetooth compatible with ESAB Helmet Connect app
Weight
920 g (2 lb)
Certifications
ISO 16321; AS/NZS 1338.1; CE; CSA Z94.3; ANSI Z87.1
Grind mode
Yes
Cut mode
Yes
Magnifier capable
Yes
Included accessories
Replacement outer ADF cover lenses (2), replacement inner ADF cover lens (1), rear FR head covering, front FR chest cover, Sentinel PRO carry bag, LED worklight AA battery, USB-C charging cable, Safety Manual
