Esab 0558-102556 Multi-process Welder 285A 460-575V 3-phase

Product Description

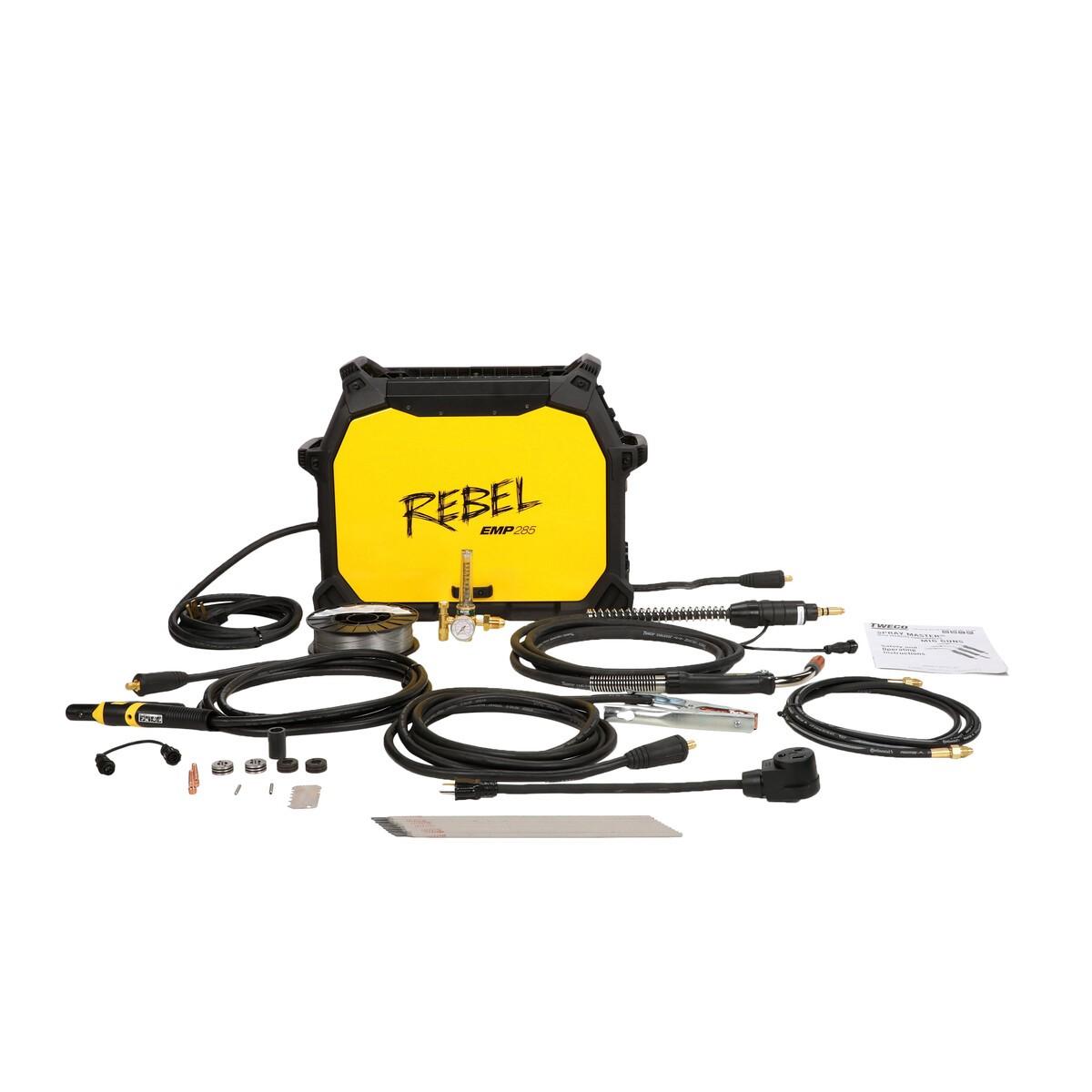

The ESAB 0558-102556 is the Rebela EMP 285ic, an industrial multi-process welding machine designed for MIG, Flux-Cored, TIG, and Stick welding applications. It operates on 460 to 575 volts, three-phase power, and delivers up to 285 amps at 50 percent duty cycle in three-phase configuration. The machine supports the full range of 0.035-inch and 0.045-inch solid and cored wires and is built for demanding industrial environments. Weighing 127 pounds, it includes a four-handle roll cage for repositioning around the shop or job site. Licensed welders and fabricators working in industrial, construction, and maintenance settings will find this machine suited to high-output production work.

The Rebela EMP 285ic is designed for industrial and commercial welding operations where a single machine must handle multiple processes without a change in power supply. Its multi-voltage, multi-phase capability allows it to be deployed across facilities with varying electrical infrastructure. The four-roll drive system accommodates solid wire up to 0.052 inches and cored wire up to 1/16 inch, as well as stick electrodes up to 5/32 inch and TIG rods up to 3/16 inch. This range of wire and electrode compatibility makes it practical for structural, pipe, plate, and general fabrication work.

Key Features

• 285A output at 50 percent duty cycle in three-phase mode, supporting spray transfer and high-deposition MIG on 0.045-inch wire
• sMIG technology dynamically monitors arc characteristics and adapts to operator technique for a stable, consistent arc
• Four-roll drive system handles solid wire up to 0.052 inches and cored wire up to 1/16 inch
• Multi-voltage, multi-phase input accepts 460 to 575 volts, three phase
• TFT multilingual display with four programmable memory locations per process, inductance control, trim adjustment, and pre/post gas flow control
• Four-handle roll cage design allows the unit to be detached from its cart for repositioning

Compatibility

Designed for industrial multi-process welding applications requiring MIG, Flux-Cored, TIG, and Stick capability on a single platform connected to 460 to 575 volt, three-phase electrical service.

Installation Notes

Installation and electrical connection should be performed by a qualified electrician in accordance with the NEC and applicable local codes for three-phase industrial equipment. Verify that the facility supply voltage matches the machine input rating before connecting. Shut off and lock out the power supply at the disconnect before making any electrical connections or performing internal service. Consult the manufacturer documentation for proper shielding gas line connections and wire drive configuration before initial operation.

Technical Specifications

• Output Amperage: 285A at 50 percent duty cycle (three-phase)
• Maximum Output: 350A
• Input Voltage: 460 to 575 volts, three phase
• Processes: MIG, Flux-Cored, TIG, Stick
• Wire Diameter Range (Solid): 0.030 inch to 0.052 inch
• Wire Diameter Range (Cored): 0.035 inch to 1/16 inch
• Electrode Capacity (Stick): Up to 5/32 inch
• TIG Rod Capacity: Up to 3/16 inch
• Drive System: Four-roll
• Weight: 127 pounds
• UPC: 662067196876

Standard Information

• Brand: ESAB
• Manufacturer Part Number: 0558-102556
