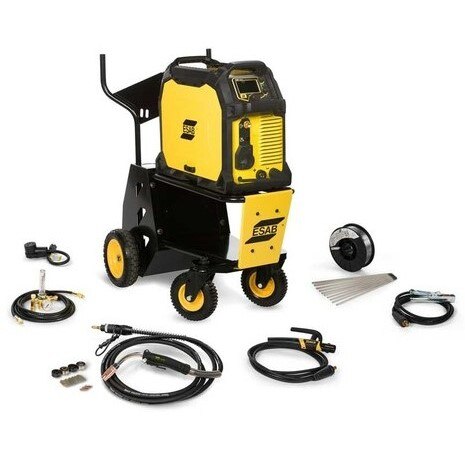

Esab 0558-102555 Multi-process Welding Machine Cart 285A

Product Description

The ESAB 0558-102555 is a multi-process, multi-voltage welding machine cart designed for industrial MIG, Flux-Cored, TIG, and Stick welding applications. Built around the Rebel EMP 285ic platform, it operates on 120 or 230 volt single-phase input and delivers 285 amps at 40 percent duty cycle. The integrated 4-roll drive system handles solid wire from .030 inches up to .052 inches and cored wire up to 1/16 inch. Stick electrodes up to 5/32 inch and TIG rods up to 3/16 inch are also supported. Licensed HVAC, pipe, and structural welding professionals will find this unit suited to both shop and field work. The cart configuration keeps the machine stable and mobile without sacrificing portability when the welder needs to be removed and carried independently.

This unit is used in industrial and commercial welding environments where a single machine must handle multiple processes without swapping equipment. The multi-voltage input allows operation on standard 120-volt circuits or 230-volt single-phase service, making it adaptable across job sites and shop configurations. Short arc and spray transfer MIG modes are both supported, along with flux-cored wire feeding across the full wire diameter range. The cart mounting provides a stable platform during stationary production work, while the roll cage and handles allow the machine to be detached and repositioned as the job requires.

Key Features

• 285A output at 40 percent duty cycle on single-phase input supports full .045-inch wire in short arc and spray transfer
• sMIG adaptive arc technology monitors arc characteristics and adjusts to operator technique for a smooth, stable bead without constant parameter changes
• 4-roll drive system feeds solid wire up to .052 inches and cored wire up to 1/16 inch for higher deposition rates
• Multi-voltage input accepts 120 or 230 volt single-phase power with no manual switching required
• TFT multilingual display includes 4 programmable memory locations per process, trim adjustment, inductance control, and pre/post flow control
• Detachable from cart with 4-handle roll cage for portable field deployment

Compatibility

Designed as an OEM cart and machine package for the ESAB Rebel EMP 285ic single-phase multi-process welder. Consult ESAB documentation for compatible torches, guns, and accessory kits.

Installation Notes

Installation should be performed by a qualified electrician or welding equipment technician familiar with NEC requirements for welding power supply circuits. Disconnect and lock out all electrical power before making input cable connections or servicing internal components. Verify that the supply circuit ampacity and conductor sizing match the machine input requirements before energizing. Do not exceed the rated duty cycle during continuous operation, as this can cause thermal shutdown or equipment damage.

Technical Specifications

• Output: 285 amps at 40 percent duty cycle
• Input Voltage: 120/230 volts
• Phase: Single phase
• Wire Diameter Range (Solid): .030 inches to .052 inches
• Wire Diameter Range (Cored): up to 1/16 inch
• Electrode Capacity (Stick): up to 5/32 inch
• TIG Rod Capacity: up to 3/16 inch
• Weight: 233 pounds
• UPC: 662067196906

Standard Information

• Brand: ESAB
• Manufacturer Part Number: 0558-102555
