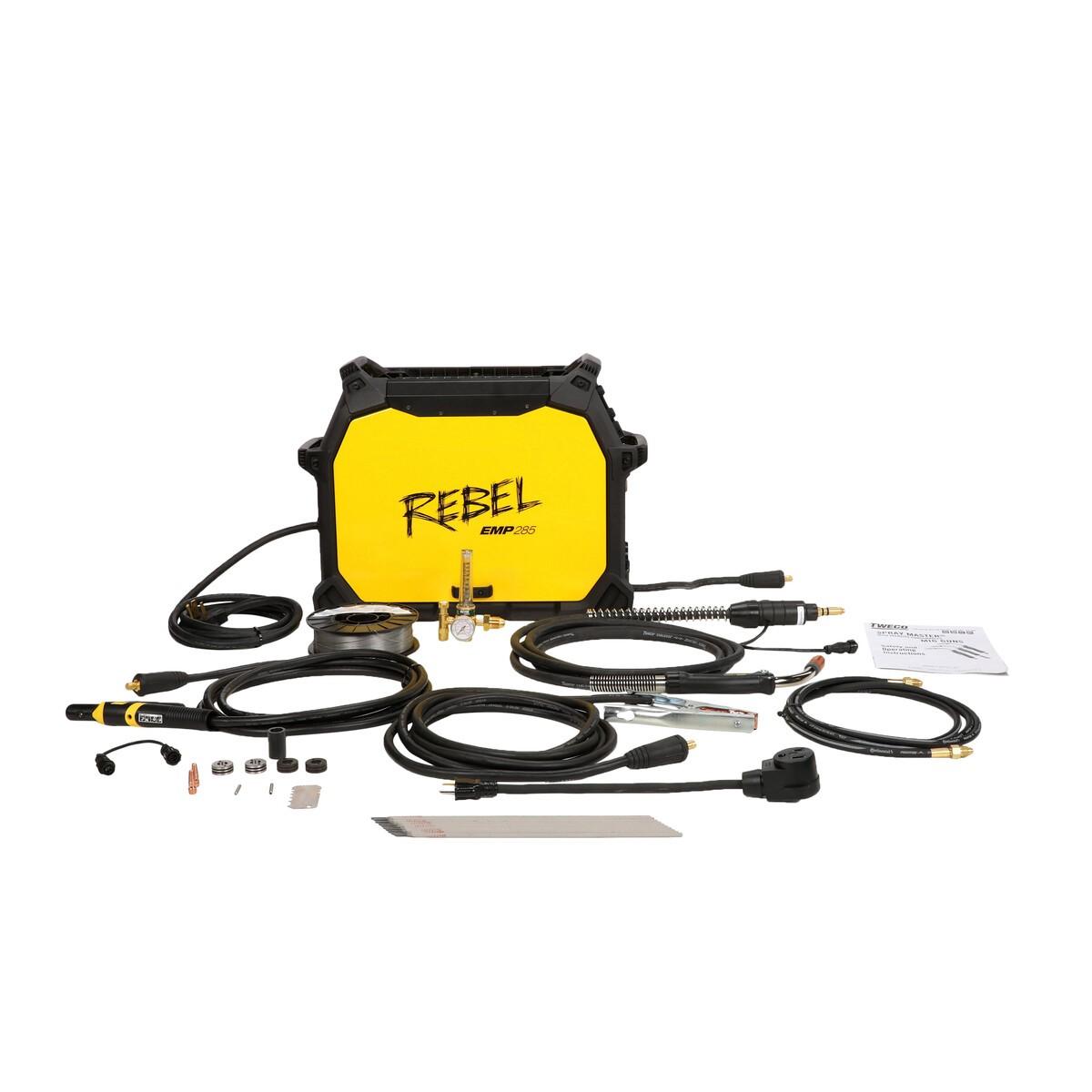

Esab 0558-102554 Multi-process Welder 285A Mig Tig Stick

Product Description

The ESAB 0558-102554 is the Rebela EMP 285ic, a true multi-process, multi-voltage industrial welding machine built for MIG, Flux-Cored, TIG, and Stick applications. It delivers 285 amps at 40% duty cycle on single-phase power and 285 amps at 50% duty cycle on three-phase power, supporting short arc and spray transfer processes. The machine runs solid wire from 0.030 inches through 0.052 inches and cored wire up to 1/16 inch, plus stick electrodes up to 5/32 inch and TIG rods up to 3/16 inch. Licensed welders and industrial fabrication shops deploy this unit for demanding production and field work.

The Rebela EMP 285ic is suited for industrial fabrication environments, structural work, maintenance and repair operations, and job-site welding. Its multi-voltage, multi-phase input capability allows deployment across varying facility power configurations without additional conversion equipment. The 4-handle roll cage and detachable cart design make it viable for both shop floors and remote field locations where mobility matters. This machine targets professional welders who need a single unit capable of handling the full range of process types on a daily production schedule.

Key Features

• 285 amps output at 40% duty cycle (single-phase) and 50% duty cycle (three-phase) for sustained high-deposition welding
• sMIG technology dynamically monitors arc characteristics and adapts to welding technique for a smooth, stable arc — set wire diameter and plate thickness to begin welding
• 4-Roll Drive System supports solid wire up to 0.052 inches, cored wire up to 1/16 inch, stick electrodes up to 5/32 inch, and TIG rods up to 3/16 inch
• Multi-voltage, multi-phase input eliminates the need for separate machines at different power supplies
• TFT multilingual display includes 4 programmable memory locations per process, trim adjustment, inductance control, pre/post flow control, and spot weld settings
• Weighs 127 pounds with a 4-handle roll cage for shop and field portability

Compatibility

Designed as an OEM multi-process welding machine compatible with ESAB-approved MIG guns, TIG torches, and stick electrode holders suitable for the Rebela EMP 285ic platform; consult ESAB documentation for approved accessory part numbers.

Installation Notes

Installation and commissioning of this welding machine should be performed by a qualified electrician or certified welding equipment technician familiar with applicable electrical codes, including NEC requirements for welding equipment circuits. Disconnect and lock out all input power before making any electrical connections or servicing internal components. Verify input voltage and phase configuration at the supply before connecting the machine to avoid damage to the power stage. Always consult the ESAB operator manual for proper grounding, shielding gas connection, and wire drive setup procedures before first use.

Technical Specifications

• Output Current (Single-Phase Duty Cycle): 285 amps at 40%
• Output Current (Three-Phase Duty Cycle): 285 amps at 50%
• Supported Processes: MIG, Flux-Cored, TIG, Stick
• Solid Wire Range: 0.030 inches to 0.052 inches
• Cored Wire Maximum: 1/16 inch
• Stick Electrode Maximum: 5/32 inch
• TIG Rod Maximum: 3/16 inch
• Weight: 127 pounds
• Drive System: 4-Roll
• UPC: 662067196890

Standard Information

• Brand: ESAB
• Manufacturer Part Number: 0558-102554
