Esab 0558-012702 Multi-process Welder 235 Amp Dual Voltage

Product Description

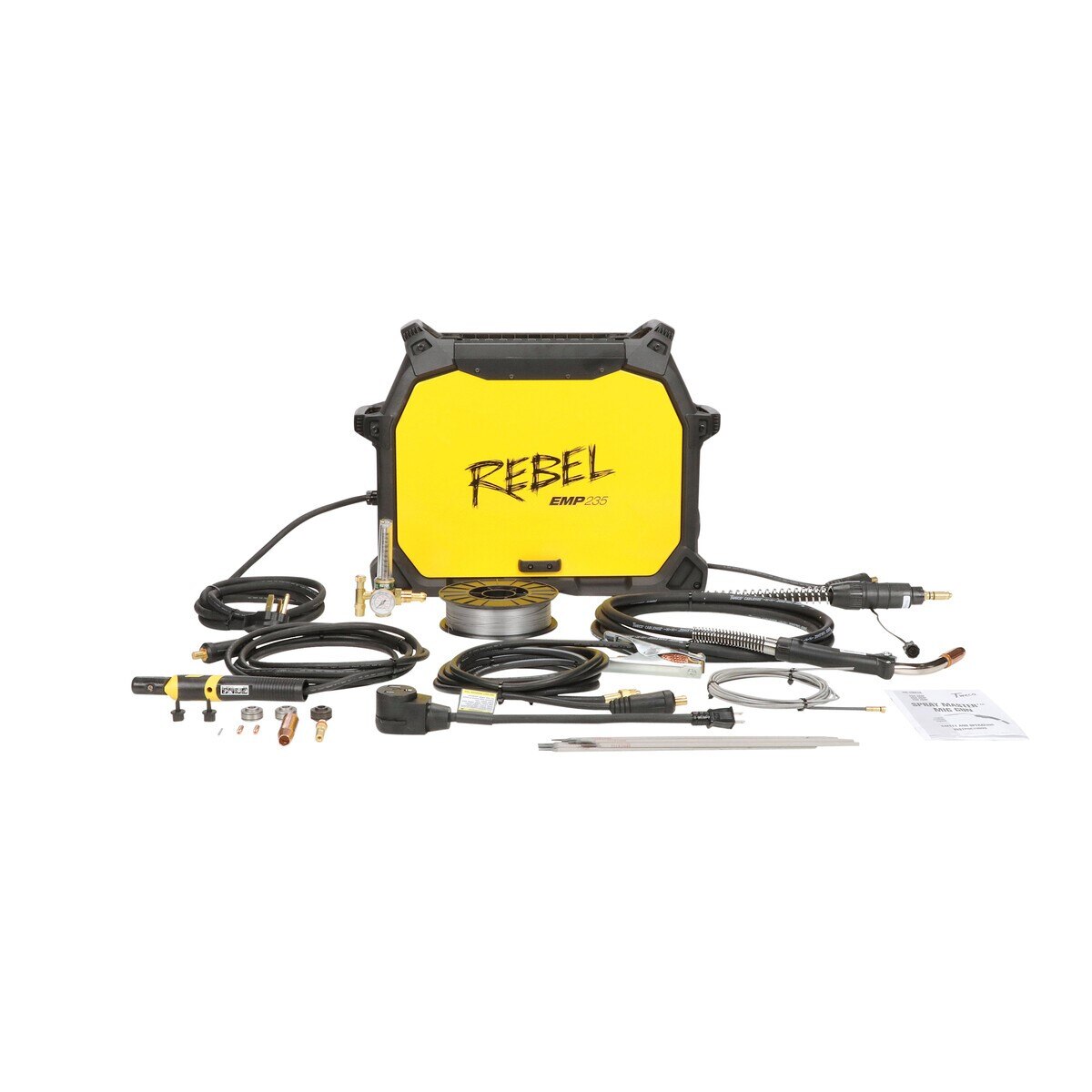

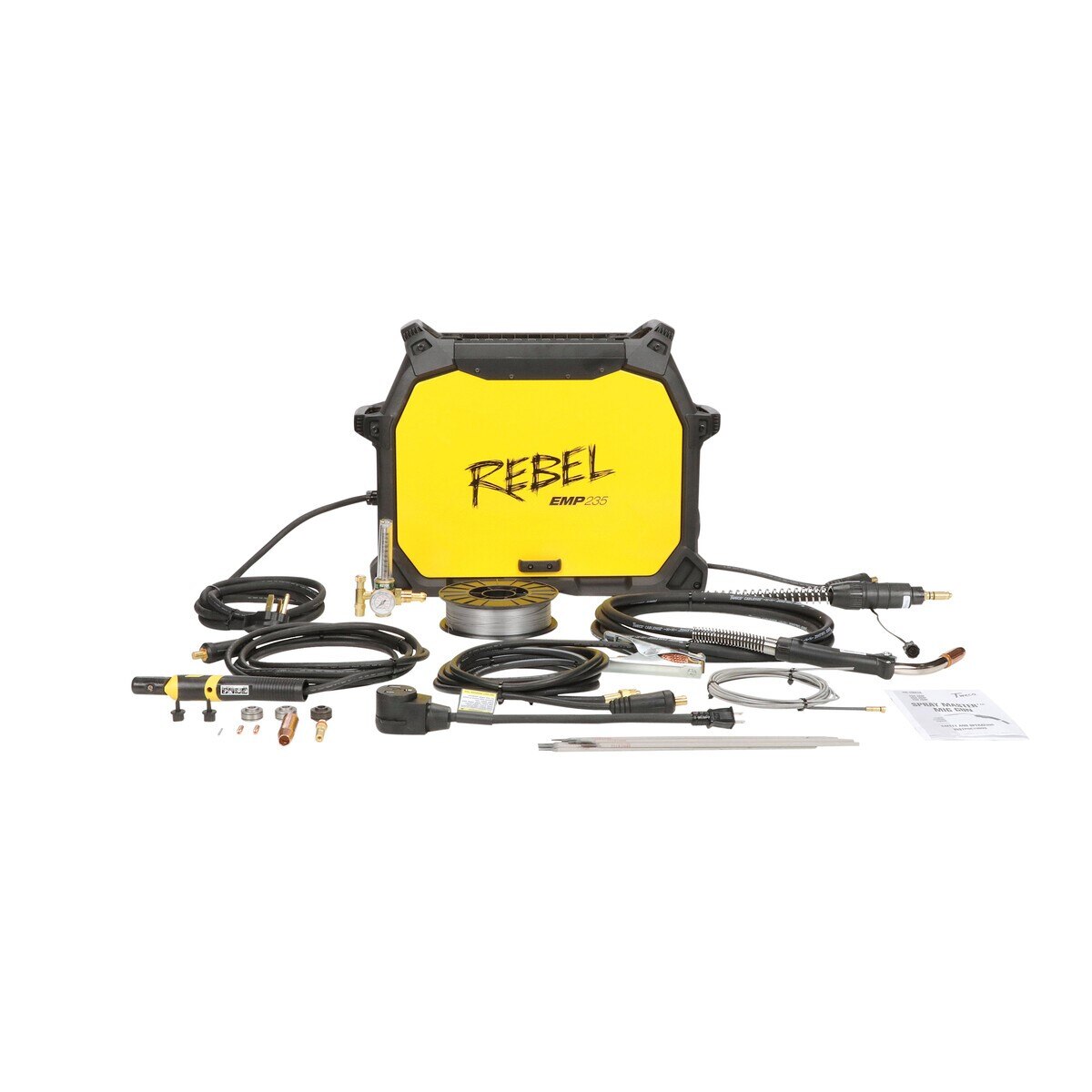

The ESAB 0558-012702 is the Rebel EMP 235ic, a true multi-process inverter welder capable of MIG, TIG, and STICK welding in a single portable unit. Weighing 53 pounds with a four-handle roll cage design, it is built for shops and job sites where mobility matters. The machine runs on dual input voltage, eliminating the need to rewire when moving between locations. A 235-amp output capacity supports a wide range of wire sizes and electrode diameters, making it suitable for light fabrication through demanding structural work. Licensed welding professionals and experienced trade welders are the primary installers and operators of this machine.

The Rebel EMP 235ic suits residential fabrication shops, commercial maintenance operations, and field service applications. Its dual voltage capability means it can plug into standard shop power or job-site supplies without a dedicated transformer. The roll cage and integrated carry handles allow a single technician to move the unit onto a cart or carry it to a remote work area. It handles MIG short-arc and spray transfer, scratch-start or lift-arc TIG, and STICK welding with rods up to 5/32 inches in diameter, covering the majority of structural and sheet-metal applications a working welder encounters daily.

Key Features

• True multi-process platform supports MIG, TIG, and STICK from one machine
• Dual input voltage capability for flexible use across shop and field locations
• 53-pound weight with four-handle roll cage for single-operator portability
• sMIG technology dynamically monitors arc characteristics and adapts output to operator technique for a smooth, stable arc
• Supports solid wire up to 0.045 inches, cored wire up to 0.052 inches, STICK rods up to 5/32 inches, and TIG filler up to 3/16 inches
• 100 memory functions via Tiptronic control for storing and recalling weld parameters

Compatibility

Designed as a standalone multi-process welding machine; compatible with standard MIG guns, TIG torches, and STICK electrode holders appropriate for a 235-amp inverter-based power source.

Installation Notes

Installation and setup should be performed by a qualified electrician or certified welding professional familiar with applicable NEC requirements for welding equipment circuits. Verify that the supply circuit amperage and conductor sizing match the machine input requirements before connecting. Always power down and lock out the supply circuit before making or changing input power connections. Do not operate in wet conditions or expose the unit to standing water.

Technical Specifications

• Process Capability: MIG, TIG, STICK
• Output Amperage: 235 amps
• Input Voltage: Dual voltage
• Maximum Solid Wire Diameter: 0.045 inches
• Maximum Cored Wire Diameter: 0.052 inches
• Maximum STICK Electrode Diameter: 5/32 inches
• Maximum TIG Filler Rod Diameter: 3/16 inches
• Memory Functions: 100
• Weight: 53 pounds
• UPC: 662067959198

Standard Information

• Brand: ESAB
• Manufacturer Part Number: 0558-012702
