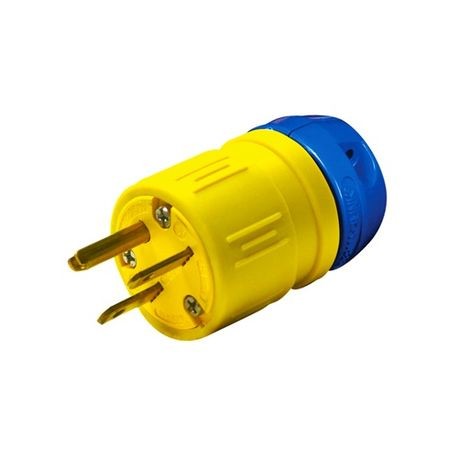

Ericson 1514-P Perma-Grip Perma-Link Perma-Tite 2 1-Phase Grounding Straight Blade Plug 250 VAC 15 A

Product Description

The Ericson 1514-P is a Perma-Grip Perma-Link Perma-Tite 2 straight blade plug designed for 1-phase grounding applications. It operates at 250 VAC and has a current rating of 15 A, featuring two poles and three wires. This plug is suitable for industrial and construction environments.

• Durable design for industrial use
• Solid brass blades provide excellent performance
• Two-screw cable clamp for secure wire connections

Product Highlights

This plug is engineered for durability and safety. It includes features like molded-in grips for easy handling and a transparent back plate for quick wiring inspection.

Product Information

Standard Information

• Brand: Ericson
• MPN: 1514-P

Technical Specifications

• NEMA Rating: NEMA 6-15
• Voltage Rating: 250 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Material: PBT/Thermoplastic Elastomer
• Temperature Rating: -20 to 100 degrees C
• Dimensions: 1.6 x 2.44 inches
• Color: Blue/Yellow
• Application: Indoor and Construction Environment
• Standard & Approvals: ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL Listed | cETLus Listed | cCSAus Certified | IEC Certified
