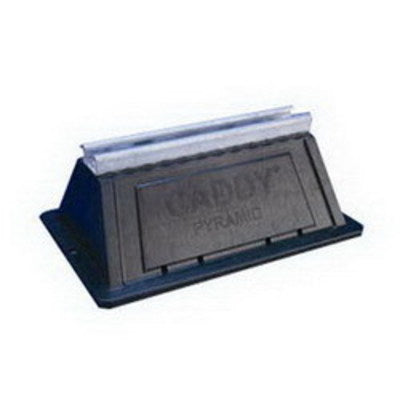

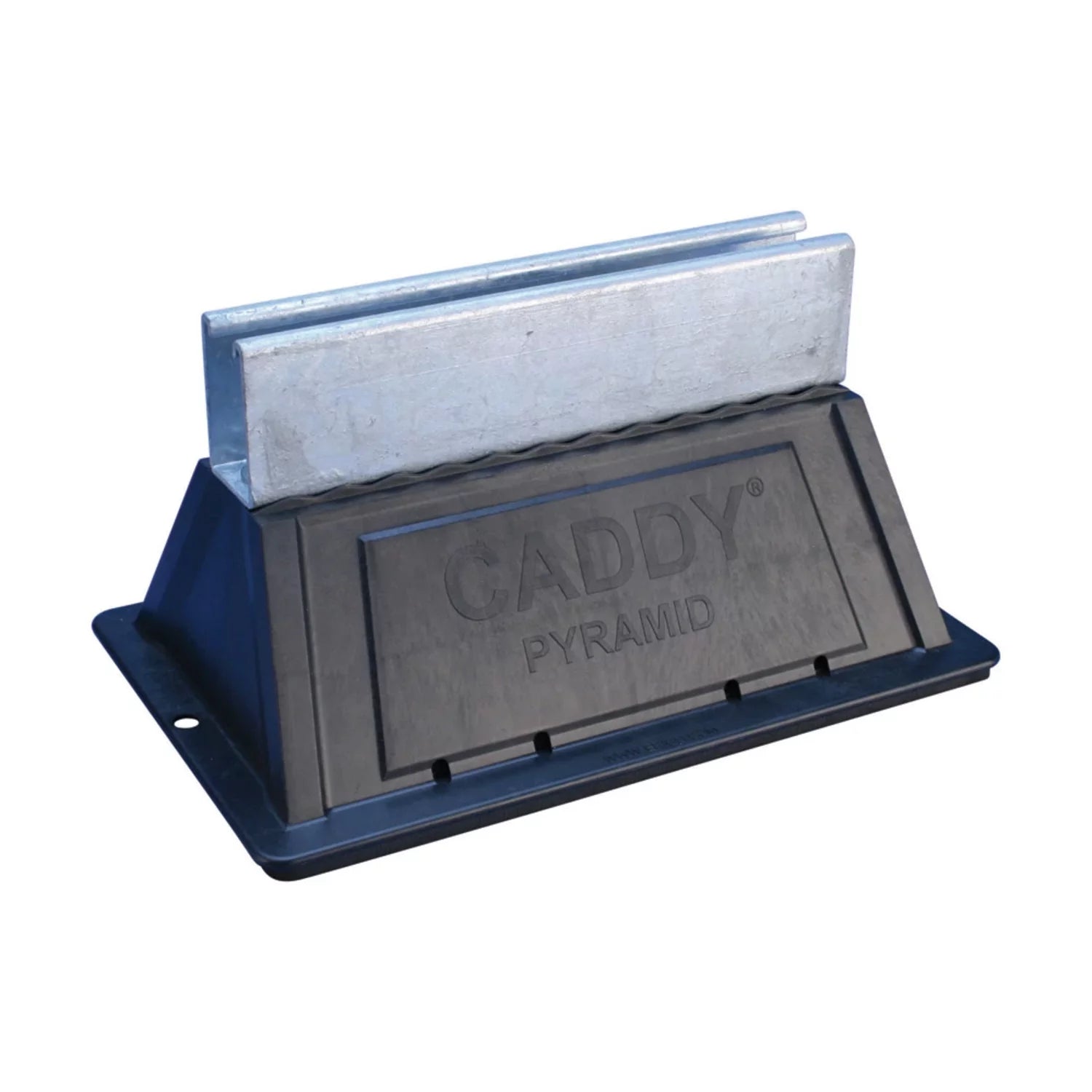

ERICO PSF10D Pyramid ST Fixed Strut Support 10 x 6.4

Product Description

The ERICO PSF10D Pyramid ST fixed strut support is built for surface-mounted support of electrical and mechanical applications on various roofing materials. Its construction includes polyethylene, polypropylene, and steel with a hot-dip galvanized finish, making it suitable for single ply, bituminous, metal, and spray foam roofs. This support is ideal for holding pipes, conduits, cable trays, and other equipment securely. The design features a foam bottom to ensure low abrasion on roof membranes.

• Supports pipes, conduits, cable trays, and equipment.
• Foam bottom protects roof membrane.
• Compatible with multiple roof surfaces.

Product Highlights

This fixed strut support offers versatility and protection for roof installations.

Product Information

Standard Information

• Brand: ERICO
• Material: Polyethylene, Polypropylene, Steel

Technical Specifications

• Finish: Hot-Dip Galvanized
• Operating Temperature: -50 to 150 °F
• Static Load Safety Factor: 3:1
• Length 1: 10 inches
• Length 2: 12.5 inches
• Height: 6.4 inches
• Width: 8 inches
• Surface Area: 92 inches²
• Unit Weight: 3 pounds
• Static Load: 1000 pounds
