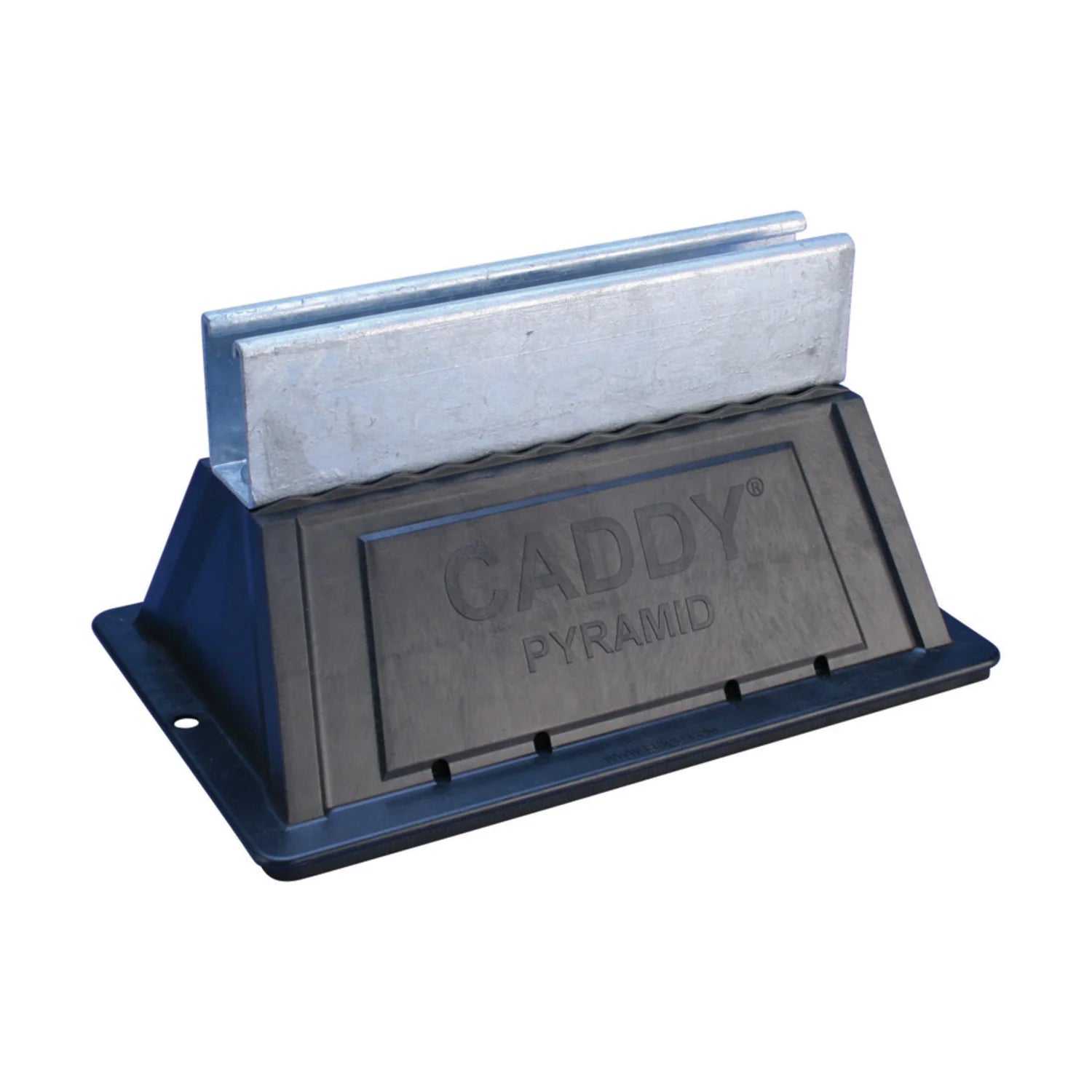

Erico PSF10D Pyramid Fixed Strut 10in D-Channel

Product Description

The ERICO PSF10D Pyramid Fixed Strut Support offers a solution for mounting electrical and mechanical services on commercial rooftops. It distributes weight across the base and features a foam pad to protect roof membranes. Constructed with UV-stabilized base materials and hot-dip galvanized strut profiles for corrosion resistance.

• Effective load distribution across uneven surfaces
• Compatible with roof surfaces including single ply, bituminous, metal and spray foam
• Ready to use out-of-the-box, saving installation time and improving productivity

Product Highlights

Lightweight and easy to transport, this fixed strut support is UV stabilized for long-lasting performance.

Product Information

Standard Information

• Brand: ERICO
• Manufacturer Part Number: PSF10D

Technical Specifications

• Material: Polyethylene;Polypropylene;Steel
• Finish: Hot-Dip Galvanized
• Temperature: -50 to 150 °F
• Static Load Safety Factor: 3:1
• Length 1 (L1): 10"
• Length 2 (L2): 12 1/2"
• Height (H): 6.4"
• Width (W): 8"
• Surface Area: 92in²
• Static Load (F): 1000lb
