ERICO PSF10C CAD PSF10C 10IN STRUT SUPPORT

Product Description

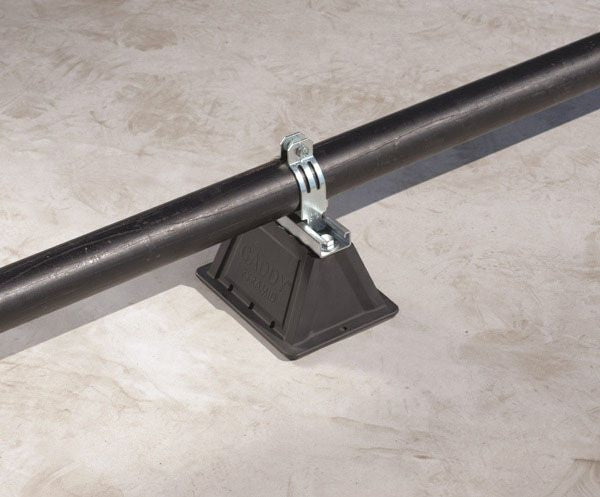

The ERICO PSF10C is a fixed strut support designed for robust applications. This component is ideal for rooftop installations. Constructed from a mix of polyethylene, polypropylene, and steel, it offers high strength and durability. The overall dimensions are twelve and a half inches in length, eight inches in width, and four point eight inches in height. It operates effectively within a wide temperature range of minus fifty to one hundred fifty degrees Fahrenheit. This product ensures safety with a static load safety factor of three to one and is capable of supporting a maximum static load of one thousand pounds.

• Material: Polyethylene, Polypropylene, Steel
• Temperature Rating: -50 to 150 Deg F
• Application: Rooftop installation

Product Highlights

This fixed strut support excels in providing structural support for various systems.

Product Information

Standard Information

• Manufacturer: ERICO
• UPC: 78285684302

Technical Specifications

• Overall Dimensions: 12.5 inches x 8 inches x 4.8 inches
• Static Load: 1000 pounds
• Surface Area: 92 square inches
• Static Load Safety Factor: 3:1
• Material Finish: Hot Dip Galvanized
• Country of Origin: USA
• Package Weight: 0.9400 LB
• Minimum Order Quantity: 1
