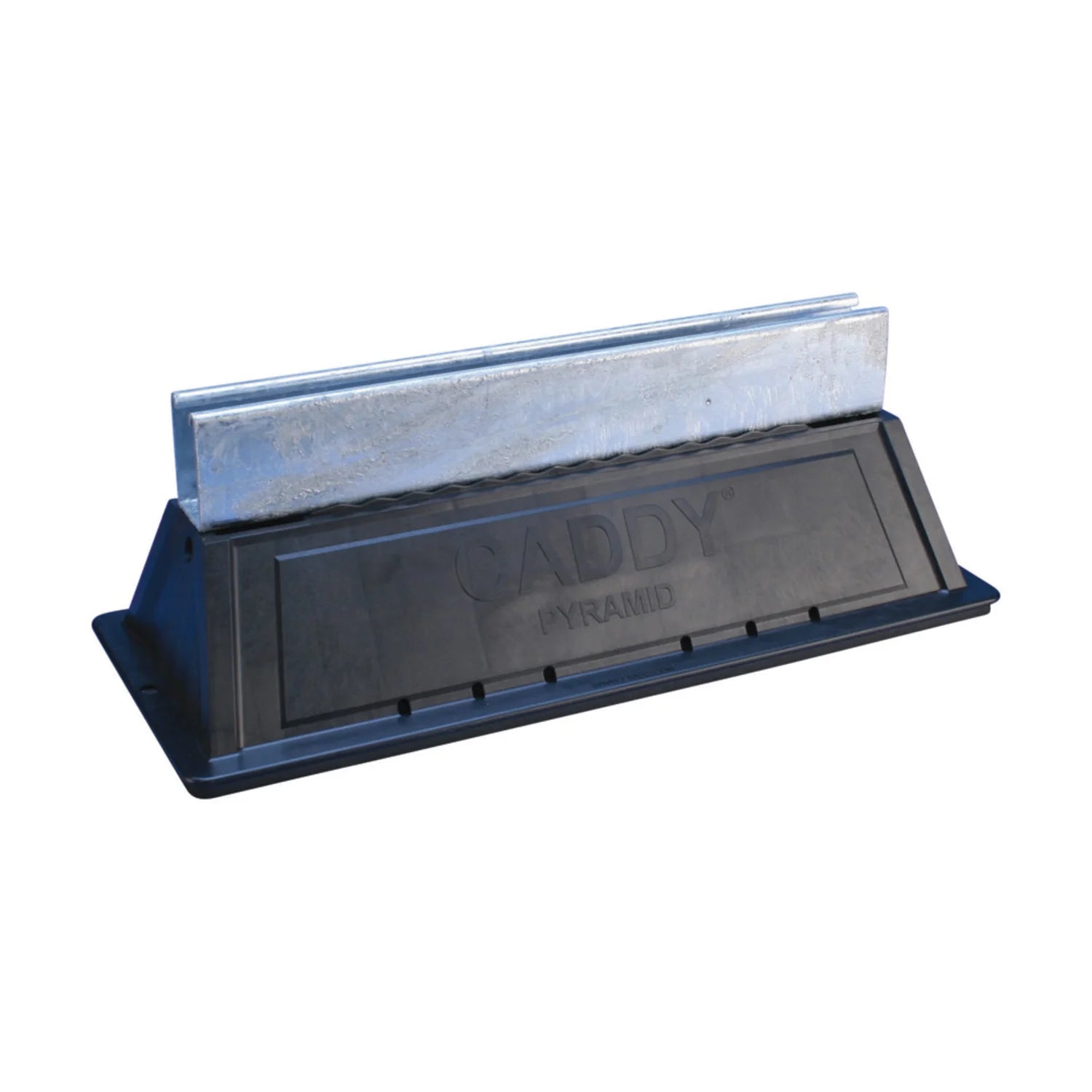

Erico-Nvent-Caddy PSF16D Pyramid ST Fixed Strut Support 16 inches x 6.4 inches

Product Description

The nVent CADDY Pyramid ST Fixed Strut Support, MPN PSF16D, offers a simple solution for mounting electrical and mechanical services on commercial rooftops. It evenly distributes weight across the base and features a foam pad to protect roof membranes. Constructed with UV-stabilized base materials and hot-dip galvanized strut profiles for corrosion resistance. Accommodates conduit, pipe, and strut fasteners.

• Effective load distribution across uneven surfaces
• Compatible with roof surfaces including single ply, bituminous, metal and spray foam
• Ready to use out-of-the-box, saving installation time and improving productivity

Product Highlights

Offers a simple and adaptable solution for mounting electrical and mechanical services on commercial rooftops.

Product Information

Standard Information

• Brand: ERICO-NVENT-CADDY
• Manufacturer Part Number: PSF16D
• Country of Origin: US

Technical Specifications

• Material: Polyethylene;Polypropylene;Steel
• Finish: Hot-Dip Galvanized
• Temperature Rating: -50 to 150 °F
• Static Load Safety Factor: 3:1
• Length 1 (L1): 16"
• Length 2 (L2): 19"
• Height (H): 6.4"
• Width (W): 8"
• Surface Area: 142 Square Inch
• Static Load (F): 1500lb
• Used On: Pipe, Conduit, Duct, Cable Tray and Equipment
• Load Capacity: 1500 lb Static
• Country of Origin: US
• Type: Fixed
