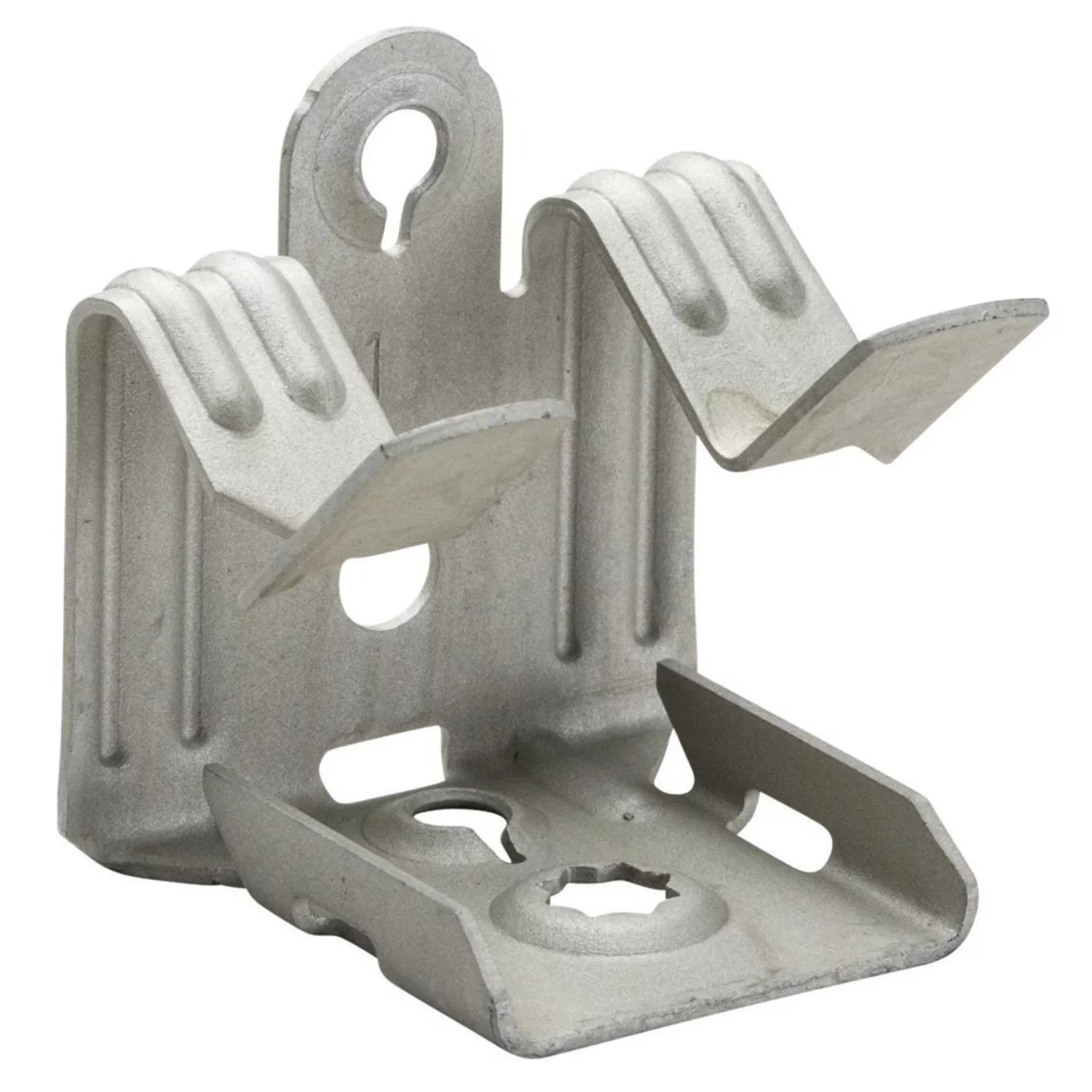

ERICO M1318 Hammer-On Flange Clip

Product Description

The ERICO M1318 is a hammer-on flange clip designed for bottom mount applications. This clip is made from durable spring steel and features an nVent CADDY Armour finish. It is suitable for flange thicknesses ranging from thirteen sixteenths to one and one eighth inches. The clip enables the secure attachment of boxes, fixtures, and other items to beam flanges. Installation is straightforward and requires only a hammer.

• Supports boxes and fixtures from beam flanges.
• Simple hammer-only installation.
• Constructed from spring steel with nVent CADDY Armour finish.

Product Highlights

The ERICO M1318 is a reliable solution for securing items to beam flanges with a straightforward installation process.

Product Information

Standard Information

• Brand: ERICO
• MPN: M1318

Technical Specifications

• Material: Spring Steel
• Finish: nVent CADDY Armour
• Flange Thickness: 13/16 - 1 1/8 inches
• Rod Size: 1/4 inches
• Static Load F1: 100 lb
• Static Load F2: 25 lb
• Static Load F3: 75 lb
• UPC: 782856953555
• EAN: 0782856953555
• Standard Packaging Quantity: 50
