Product Description

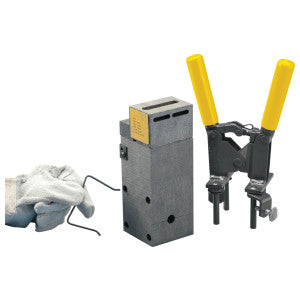

The ERICO GTC163Q Cadweld graphite mold is designed for various connection styles and conductor combinations. It is used for cable to ground rod or other rounds, specifically with copper-bonded ground rods of 5/8" diameter and 500 kcmil concentric conductors. nVent ERICO Cadweld Exothermic Connections are rated with the same current capacity as the conductor.
- Forms a permanent, low resistance connection
- Provides a molecular bond
- Portable installation equipment with no external source of power required
Product Highlights
The GTC163Q provides a reliable, permanent connection for grounding applications, utilizing exothermic connections for optimal performance and longevity.
Product Information
Standard Information
-
Brand: ERICO
-
Manufacturer Part Number: GTC163Q
-
Country of Origin: Unknown
Technical Specifications
-
Mold Family: GT
-
Ground Rod Type: Copper-bonded
-
Ground Rod Diameter, Nominal: 5/8"
-
Ground Rod Diameter, Actual (Ø): 0.56"
-
Conductor Size: 500 kcmil Concentric
-
Conductor Outer Diameter, Nominal: 0.81"
-
Kit: No
-
Mold Split: Vertical
-
Split Crucible: No
-
Wear Plates: No
-
Mold Only: No
-
Welding Material: 250 or 250PLUSF20, Sold Separately
-
Handle Clamp: L160, Sold Separately
-
Price Key: C
-
UNSPSC: 39121457
-
Brand: CADWELD
-
Material: Graphite
-

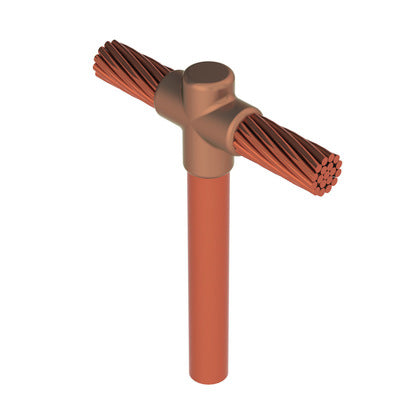

Connection Type: Cable to Ground Rod/Other Rounds
-
Mold Price Key: C
-
Specifications: 0.813 in OD Conductor, Vertical Tee Horizontal Through
