ERICO CSBUNIV050EG Universal Structural Attachment 14 mm Hole

Product Description

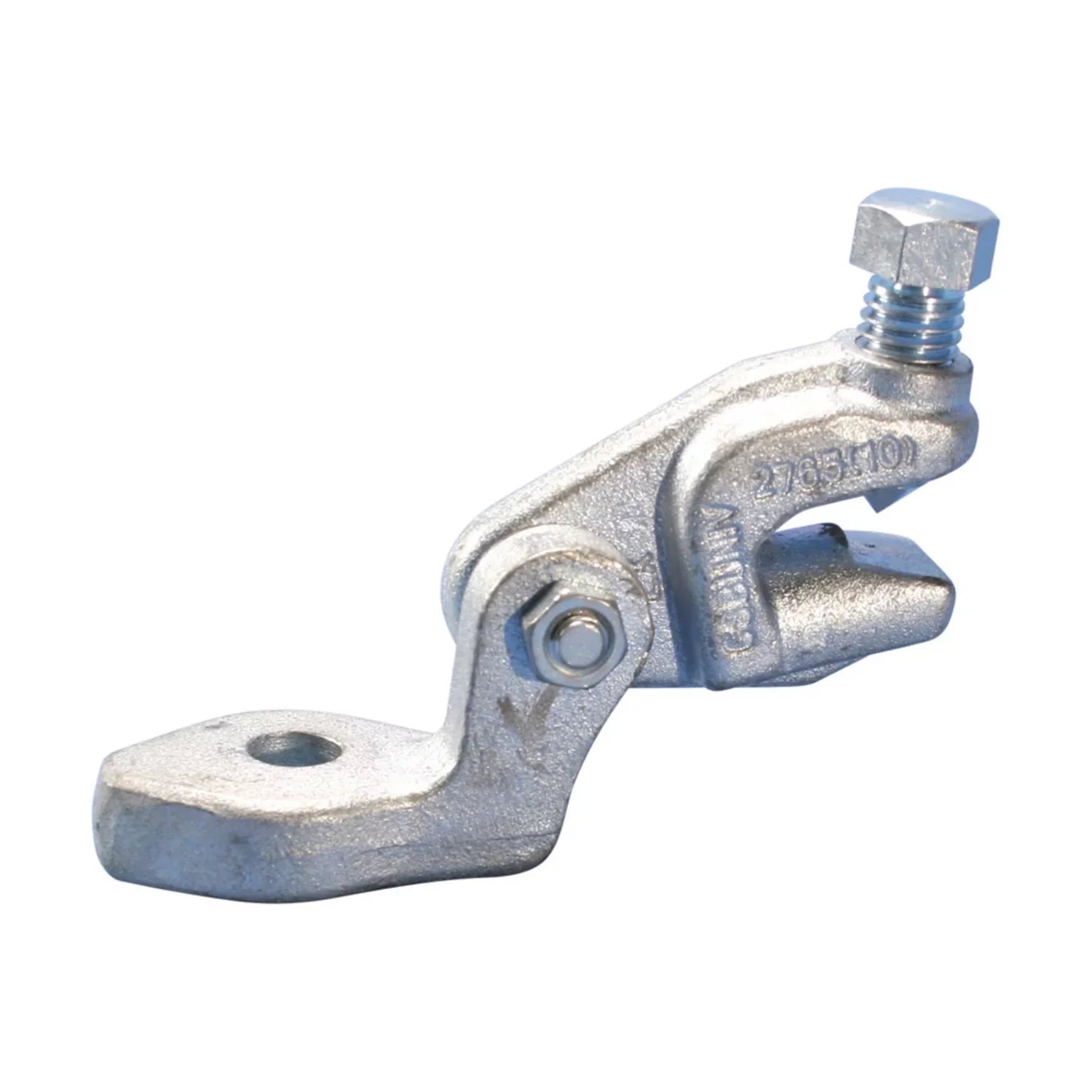

The ERICO CSBUNIV050EG universal structural attachment is designed for direct attachment to various surfaces, including concrete, wood, bar joists, and I-beams. It features a snap-off bolt head that simplifies both installation and inspection of seismic sway braces. It can be used for lateral and longitudinal sway brace applications, supporting brace pipes ranging from one inch to two inches and angle iron braces measuring one-quarter inch.

• Universal design allows direct attachment to various surfaces.
• Snap-off bolt head simplifies installation and inspection.
• Suitable for lateral and longitudinal sway brace applications.

Product Highlights

This attachment is versatile for fire protection use.

Product Information

Standard Information

• Article Number: 404407
• Material: Cast Iron

Technical Specifications

• Finish: Electrogalvanized
• Hole Size: 14 mm
• A: 133.4 mm
• B: 101.6 mm
• C: 41.4 mm
• Brace Pipe Size: 1 inch - 2 inches
• Brace NB/DN: 25 mm - 50 mm
• Packing Quantity: 1
• Application: Fire Protection
• UL Listed: Yes
