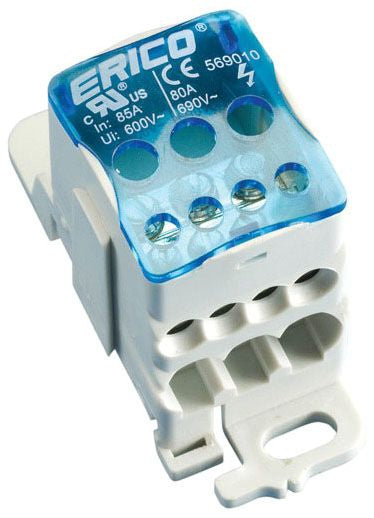

ERICO 569010 CAD 80A DISTR BLOCK

Product Description

The ERICO 569010 is a modular power distribution block rated for both high voltage AC and DC applications. It is engineered to manage electrical connections effectively, accommodating various wire sizes.

• Voltage rating: up to 600 Volts AC and 1000 Volts DC
• Current rating: 85 Amps (UL/CSA); 80 Amps (IEC)
• Compatible wire sizes: 16 to 4 AWG for primary and secondary openings

Product Highlights

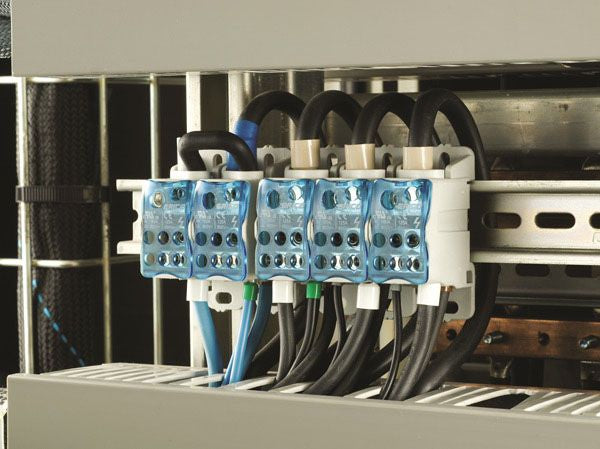

This power distribution block is designed for reliable performance in a variety of electrical installations. It is ideal for connecting multiple circuits while ensuring safety and compliance with standards.

Product Information

Standard Information

• Manufacturer: ERICO
• UPC: 78285659417

Technical Specifications

• Voltage Rating: 600 Volt (UL), 1000 Volt AC/DC (IEC)
• Current Rating: 85 Amp (UL/CSA), 80 Amp (IEC)
• Number of Poles: 1
• Primary Openings per Pole: 1
• Secondary Openings per Pole: 6
• Connector Material: Tin Plated Copper
• Housing Material: Molded Thermoplastic
• Enclosure Rating: IP20
• Short Circuit Current Rating: 100 Kiloamp
