Erico 559620 ERC 559620 1/4-1/4 STANDOFF INS

Product Description

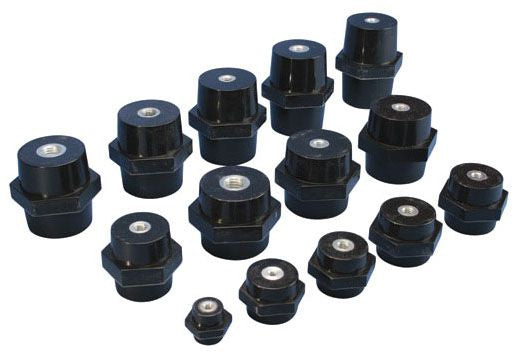

Erico 559620 is a low voltage insulator designed to provide reliable electrical insulation. This product features a voltage rating of 750 VAC and is constructed from fiberglass reinforced thermal set polyester. The diameter measures 1.41 inches and length is 1-1/4 inches. It is suitable for various applications involving grounding and bonding, particularly in electrical power connections.

• Voltage Rating: 750 VAC
• Material: Electrogalvanized fiberglass reinforced thermal set polyester
• Includes one electro zinc plated insert

Product Highlights

This insulator is ideal for low voltage applications where support and insulation are critical. It complies with UL standards in both Canada and the US, ensuring safety and reliability in use.

Product Information

Standard Information

• Manufacturer: Erico
• UPC: 78285657938

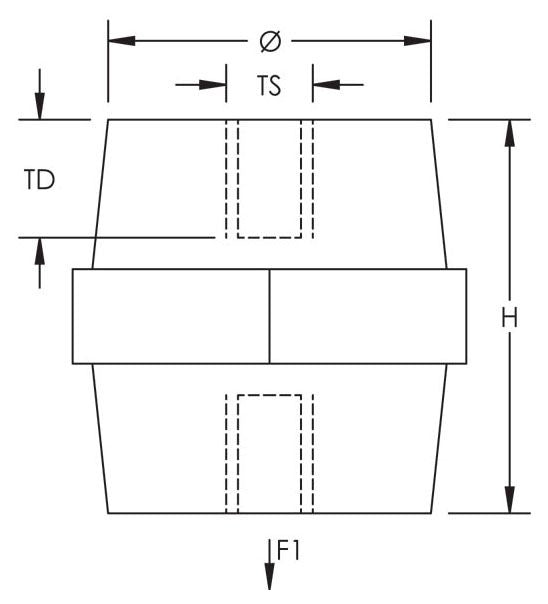

Technical Specifications

• Voltage Rating: 750 VAC
• Diameter: 1.41 inches
• Length: 1-1/4 inches
• Tensile Strength: 2300 lbs
• Thread Size: 1/4 inch - 20 TPI
• Thread Depth: 5/16 inches
• Hex Width: 1-5/8 inches
• Temperature Rating: -40°F to 266°F
