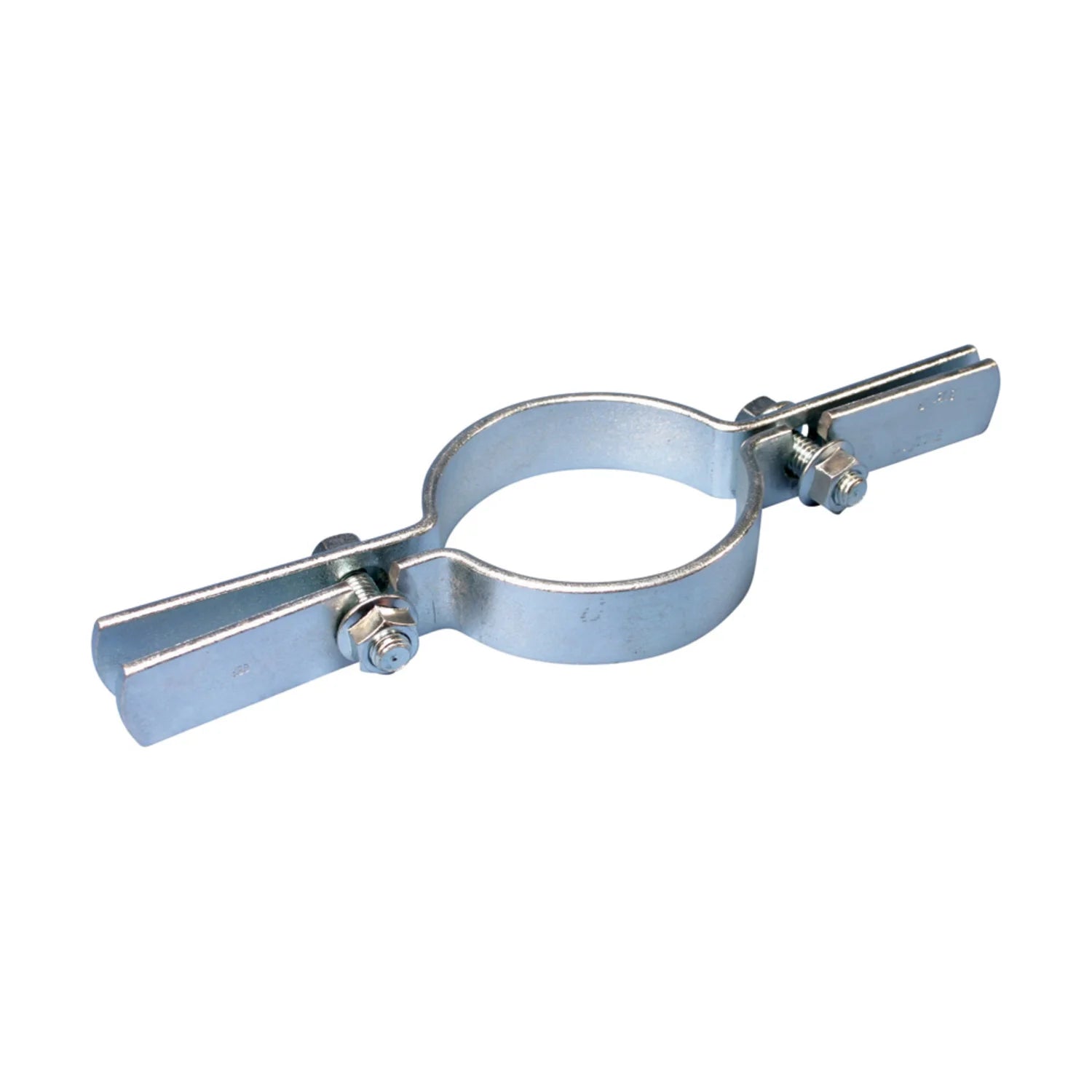

Erico 5100150EG CAD 1-1/2 Riser Clamp

Product Description

The ERICO 5100150EG CAD 1-1/2 Riser Clamp is designed for suspending vertical steel pipe risers. Constructed from steel with an electrogalvanized finish, this pipe clamp fits a 1-1/2 inch pipe size with a 1.9 inch outer diameter. It features slotted holes to simplify assembly and eliminate loose hardware. The clamp has a load rating of 255 lb.

• Only one tool needed to tighten due to serrated wash-heads
• Conforms with Federal Specification WW-H-171 (Type 8), Manufacturers Standardization Society (MSS) SP-58 (Type 8)
• Slotted holes simplify assembly and eliminate loose hardware

Product Highlights

The ERICO 5100150EG riser clamp supports vertical steel pipes, simplifying installation with its design and compliance with industry standards.

Product Information

Standard Information

• Brand: ERICO
• Manufacturer Part Number: 5100150EG
• Country of Origin: CHN

Technical Specifications

• Pipe Size: 1 1/2"
• Clamp Material: Steel
• Number of Screw/Bolts: 2
• Finish: Electrogalvanized
• Load Rating: 255lb
• Applicable Standard: WW-H-171 Type 8, MSS-SP-58 Type 8
• Outer Diameter (OD): 1.9"
• Hole Size (HS): 7/16"
• Buy Line: CAD
• Static Load (F): 255lb
• UPC: 782856369301
• EAN: 0782856369301
• Standard Packaging Quantity: 25
• Packing Quantity: 1
