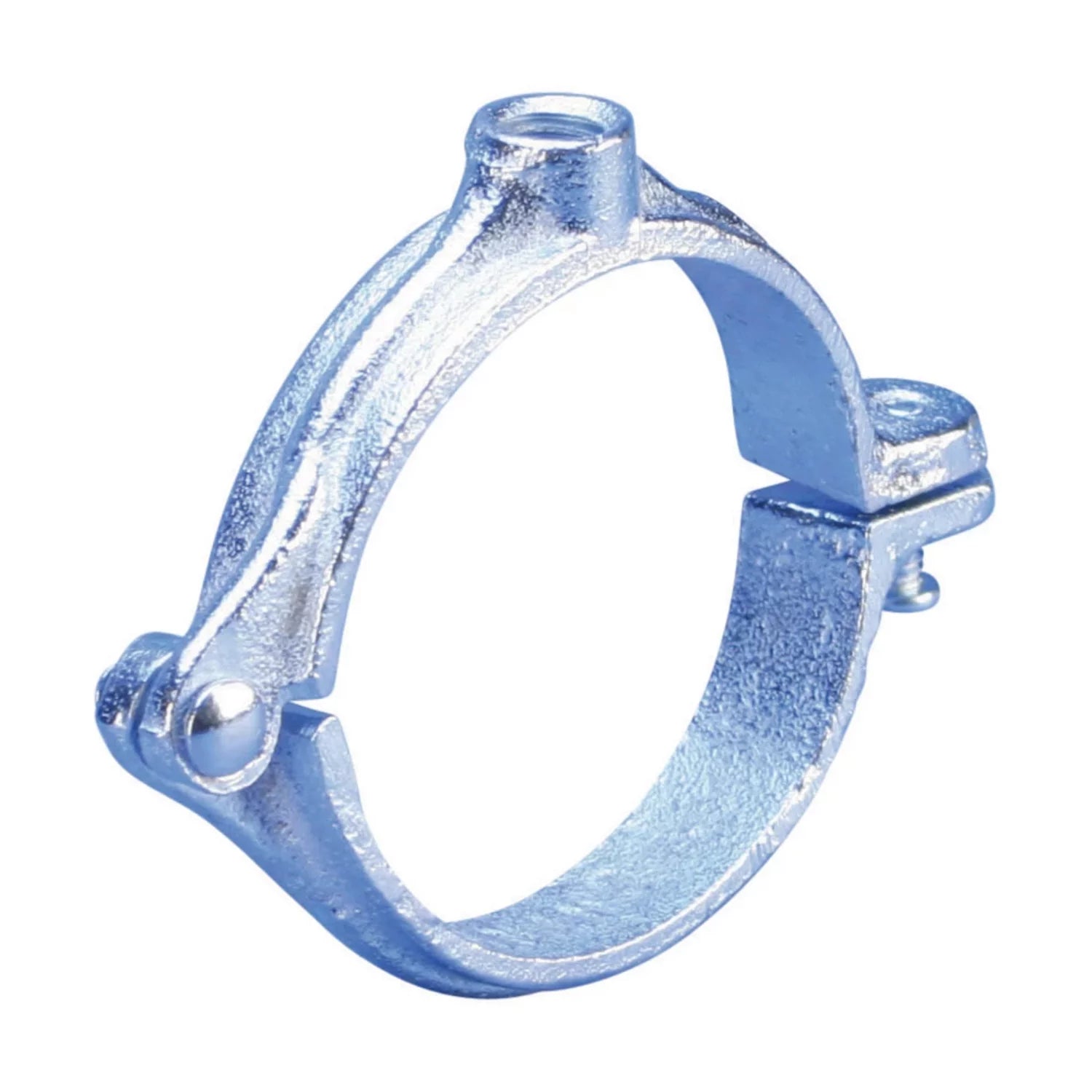

ERICO 4550400PL 455 Malleable Split Ring Hanger 4 inches Pipe

Product Description

The ERICO 4550400PL is a malleable split ring hanger designed for suspending stationary non-insulated piping systems. It is ideal for installations close to ceilings or walls, minimizing the space used by the piping. This hanger meets the requirements set by Federal Specification WW-H-171 (Type 25) and Manufacturers Standardization Society MSS SP-58 (Type 12).

• Recommended for the suspension of stationary non-insulated pipe lines
• Allows for piping runs close to ceiling or walls
• Meets federal and manufacturer standards for quality and safety

Product Highlights

Product Information

Standard Information

• Material: Cast Iron
• Catalog Number: 4550400PL

Technical Specifications

• Finish: Plain
• Pipe Size: Four inches
• Outer Diameter (OD): Four and one-half inches
• Rod Size (RS): Half inch
• A: Five and three-eighths inches
• B: Eleven-sixteenths inches
• Static Load (F): Three hundred lbf
