Erico 3100050PL CADDY Beam Clamp Plain

Product Description

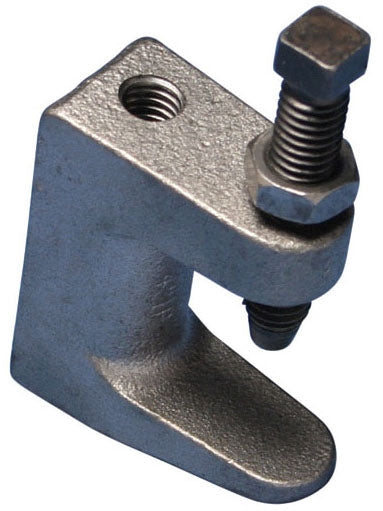

The Erico CADDY 3100050PL is a beam clamp designed for universal application. This clamp features a maximum jaw capacity of one inch and a robust load capacity of nine hundred fifty pounds for F1 applications and seven hundred sixty pounds for F2 applications. It is crafted from cast iron for durability and is simple to install.

• Maximum Jaw Capacity: 1-1/4 inches
• Load Capacity: 950 pounds (F1), 760 pounds (F2)
• Material: Cast Iron

Product Highlights

This clamp is ideal for various plumbing and electrical installations. It complies with several standards, including UL and ANSI specifications, making it suitable for both Canada and US applications.

Product Information

Standard Information

• Type: Universal
• Finish: Plain

Technical Specifications

• Model: 310
• Manufacturer: Erico
• Maximum Jaw Capacity: 1-1/4 inches
• Load Capacity: 950 pounds (F1), 760 pounds (F2)
• Material: Cast Iron
• Torque Required: 11 foot-pounds
• Rod Size: 1/2 inch
• UPC: 782856348986
