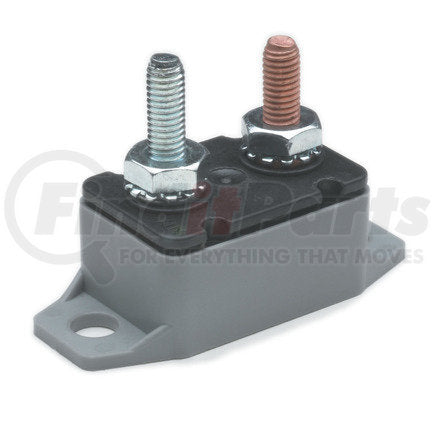

Equipment Controls 30427 Circuit Breaker or Grounding Lug

Product Description

The Equipment Controls 30427 is a versatile electrical component that combines a circuit breaker and a grounding lug. The grounding lug functions effectively with aluminum, copper, and ACSR connections and features a one-hole design. The circuit breaker is available in durable steel or plastic housing and is classified as a Type I unit, complete with a bracket and 10-32 studs for easy terminal connections. It is designed for bolt-down mounting.

• Grounding lug designed for multiple connection types.
• Circuit breaker with reliable steel or plastic construction.
• Includes 10-32 studs for terminal connections.

Product Highlights

Product Information

Standard Information

• Manufacturer Part Number: 30427
• Application: Aluminum, Copper and ACSR

Technical Specifications

• Number of Holes: One-hole
• Pad Material: Aluminum
• Sleeve Material: Aluminum
• Stud/Bolt Size: 3/4 inches
• Voltage: 12V DC
• Amperes: 40
• Terminals: 10-32 studs
• Housing Style: Grey Plastic
• Mounting Method: Bolt-Down
• ACSR Conductor Size: #6
• Solid or Compact Conductor Size: #4 AWG
• Stranded or Compressed Conductor Size: #6 AWG
• Connection: Compression
• Type: Lug
• Overall Length: 3.78 inches
• Terminal Size: 1.75 inches x 1.50 inches x 0.125 inches
