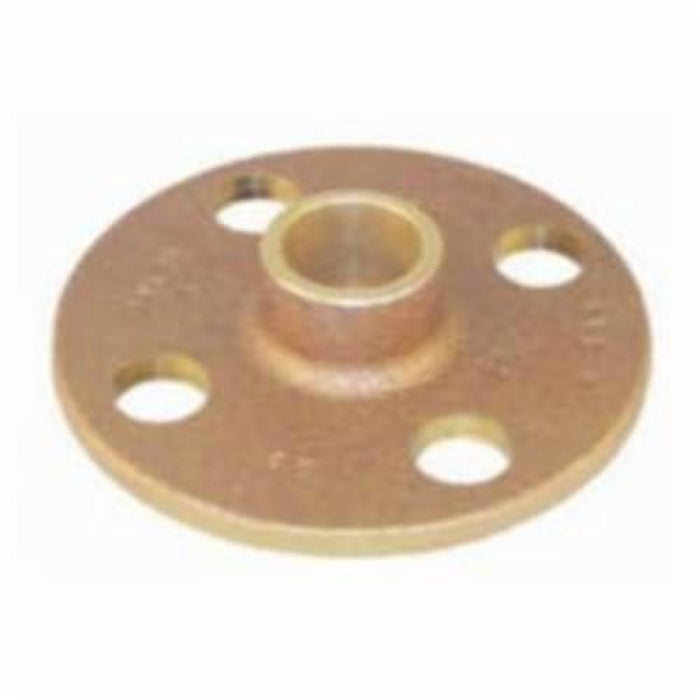

EPC 10056632 Solder Companion Flange 3 in Nominal

Product Description

The EPC 10056632 is a solder companion flange designed for robust connections in plumbing systems. This product is made by Elkhart Products Company, ensuring durability and reliability. Constructed of cast brass, it features a nominal size of three inches and a variety of specifications suited for various applications.

• Bolt circle diameter of six inches for secure fittings.
• Includes four bolt holes with a size of three-fourths inches.
• Manufactured for domestic use with a pressure class of 125 pounds.

Product Highlights

The flange is ideal for connecting pipes within plumbing infrastructure, particularly in soldered systems.

Product Information

Standard Information

• Brand: EPC
• Manufacturer: Elkhart Products Company

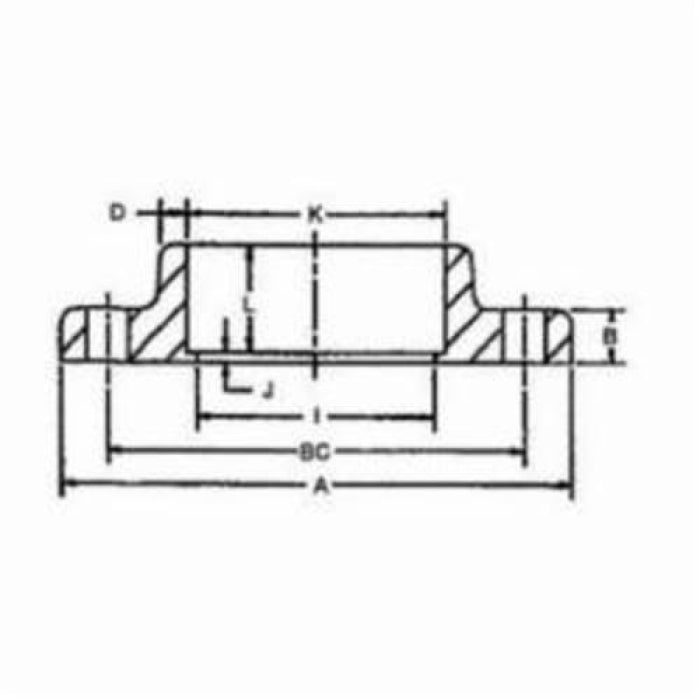

Technical Specifications

• Nominal Size: 3 in
• Inside Diameter: 3.128 to 3.133 in
• Outside Diameter: 7-1/2 in
• Thickness: 0.38 in
• Material: Cast Brass
• Connection Type: C x C
• Bolt Circle Diameter: 6 in
• Number of Bolt Holes: 4
• Bolt Hole Size: 3/4 in
• Pressure Class: 125 lb
• Series: 4741
• Domestic/Import: Domestic
