EPC 10033034 111-R Solder Reducing Tee, 2-1/2 x 2-1/2 x 2 in, C x C x C

Product Description

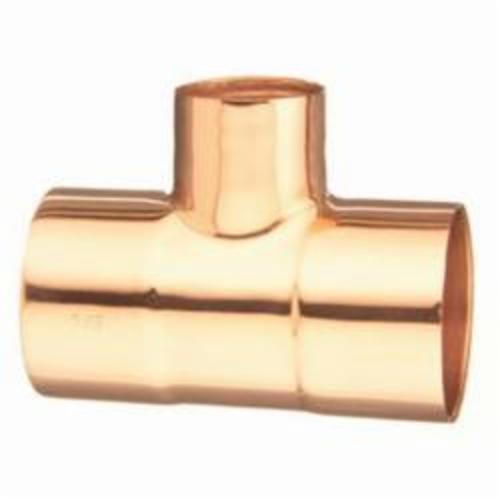

The EPC 10033034 is a solder reducing tee fitting made of copper. This fitting has a nominal size of two and one-half by two and one-half by two inches. The end style is C x C x C. It is suitable for use in industrial and residential applications.

• Wrot copper construction
• Pressure rating of 335 psi
• Temperature rating of negative twenty to one hundred degrees Fahrenheit

Product Highlights

This fitting is made from recycled copper, contributing to environmentally safe manufacturing practices.

Product Information

Standard Information

• Brand: EPC
• Manufacturer Part Number: 10033034

Technical Specifications

• Dimensions: 2-5/8 x 2-5/8 x 2-1/8 in OD
• Application: Industrial and Residential
• End Style: C x C x C
• Fitting Type: Tee
• Material: Copper
• Nominal Size: 2-1/2 x 2-1/2 x 2 in
• Pressure Rating: 335 psi
• Series: 111R Series
• Standards/Approvals: ASME/ANSI B16.22, ANSI 61, NSF Certified, MSS SP104
• Temperature Rating: -20 to 100 deg F
• Type: Solder
