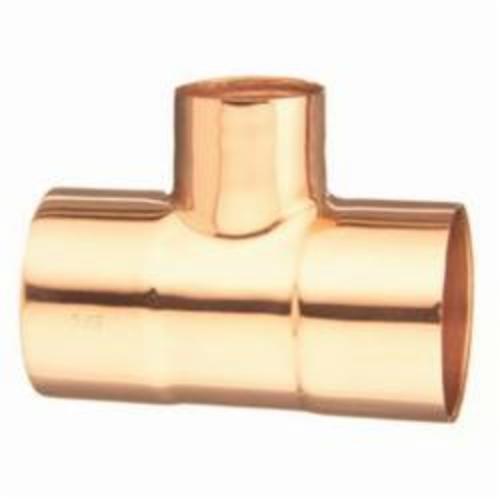

EPC 10032992 111-R Solder Reducing Tee 2 x 1-1/2 x 3/4 in

Product Description

The EPC Reducing Tee with MPN 10032992 is designed for diverse plumbing applications. This solder joint fitting connects pipes of varying dimensions: two inches, one and a half inches, and three-quarters of an inch, creating a seamless transition in piping systems.

• Wrot copper construction
• Pressure rating of up to 360 psi
• Temperature tolerance from -20 to 100 degrees Fahrenheit

Product Highlights

This fitting is ideal for industrial and residential use, offering reliable performance and ease of installation.

Product Information

Standard Information

• Manufacturer: EPC
• Product Type: Solder Reducing Tee

Technical Specifications

• Dimensions: 2-1/8 x 1-5/8 x 7/8 inches outer diameter
• Nominal Size: 2 x 1-1/2 x 3/4 inches
• End Style: C x C x C
• Material: Copper
• Pressure Rating: 360 psi
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Series: 111R Series
• Standards: ASME/ANSI B16.22, ANSI 61/NSF Certified, MSS SP104
