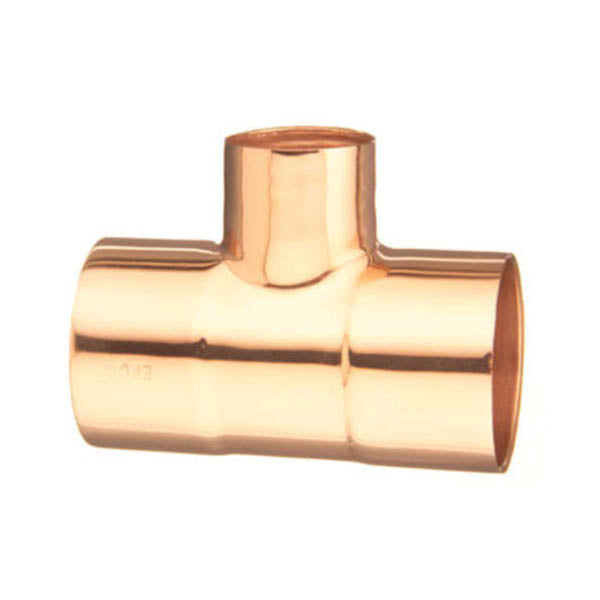

EPC 10032956 111-R Solder Reducing Tee, 1-1/2 x 3/4 x 1/2 in, C x C x C

Product Description

The EPC Reducing Tee with MPN 10032956 is a solder fitting used to connect three pipes at right angles. It features a design suitable for both industrial and residential applications. This product has a nominal size of one and one-half by three-fourths by one-half inches. The connections are made using a copper solder joint. The fitting material is Wrot copper, known for its durability and resistance to corrosion.

• Environmentally safe production with recycled materials
• Designed for seamless joining of copper tubes
• Temperature rated from minus twenty to one hundred degrees Fahrenheit

Product Highlights

The product offers reliable fittings for plumbing and HVAC systems.

Product Information

Standard Information

• Manufacturer: EPC
• Part Number: 10032956

Technical Specifications

• Type: Solder
• Fitting Type: Tee
• Material: Wrot Copper
• Nominal Size: 1-1/2 x 3/4 x 1/2 in
• End Style: C x C x C
• Dimensions: 1-5/8 x 7/8 x 5/8 in OD
• Series: 111-R
• Temperature Rating: -20 to 100 deg F
• Standards/Approvals: ASME/ANSI B16.22, MSS SP104
