EPC 10032932 Solder Reducing Tee 1-1/2 x 1-1/4 x 1/2 in

Product Description

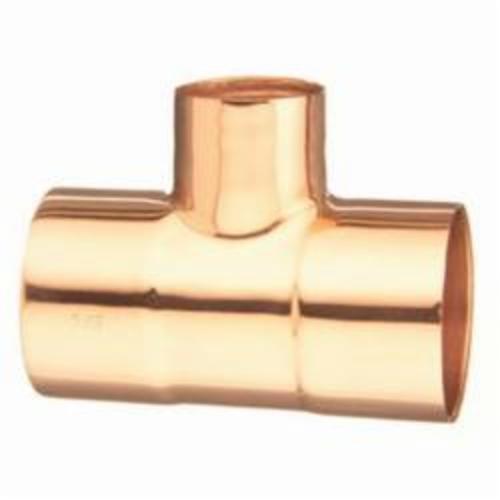

The EPC 10032932 is a solder reducing tee fitting made from copper. It has a nominal size of one and one-half inches by one and one-fourth inches by one-half inch. This fitting connects three copper pipes with a C x C x C end style, suitable for both industrial and residential applications. It is designed to operate under a pressure rating of four hundred five psi and can withstand temperatures ranging from negative twenty to one hundred degrees Fahrenheit.

• Wrot copper construction
• Pressure rating of four hundred five psi
• Suitable for industrial and residential use

Product Highlights

This solder joint fitting offers reliable performance and is made from recycled materials.

Product Information

Standard Information

• Manufacturer: EPC
• Part Number: 10032932

Technical Specifications

• Application: Industrial and Residential
• Dimensions: 1-5/8 x 1-3/8 x 5/8 in OD
• Domestic/Import: Domestic
• End Style: C x C x C
• Fitting Type: Tee
• Material: Copper
• Nominal Size: 1-1/2 x 1-1/4 x 1/2 in
• Pressure Rating: 405 psi
• Series: 111R Series
• Standards/Approvals: ASME/ANSI B16.22, ANSI 61/NSF certified, MSS SP104
• Temperature Rating: -20 to 100 deg F
• Type: Solder
