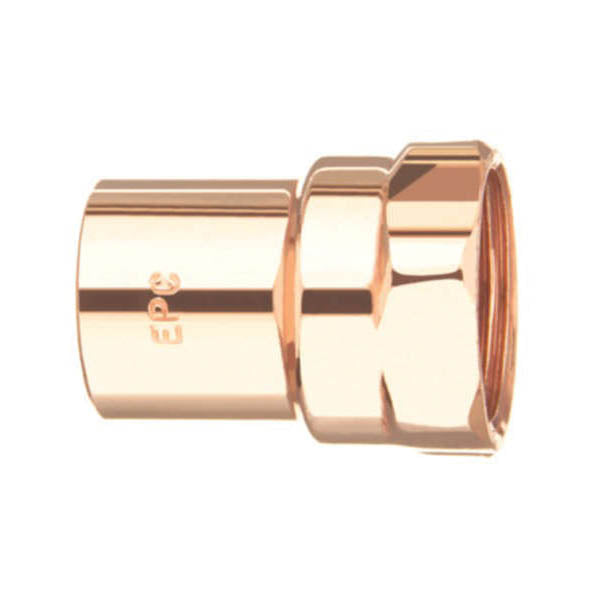

EPC 10030130 103 Solder Female Adapter, 1/2 in, C x FNPT, Copper, Domestic

Product Description

The EPC 10030130 103 Solder Female Adapter is a reliable fitting for various applications. Designed for copper tubing, it is suitable for both residential and industrial use. The adapter is crafted from copper and features a nominal size of one half inch with a C x FNPT end style. It supports a pressure rating of seven hundred twenty psi and operates within a temperature range of negative twenty to one hundred degrees Fahrenheit.

• Compatible with ASTM B88 and ASTM B280 seamless copper tube
• Environmentally friendly as over fifty percent of the copper used is recycled
• Meets ASME/ANSI B16.22 and MSS SP104 standards

Product Highlights

This solder joint fitting is an essential component for plumbing systems, ensuring secure connections.

Product Information

Standard Information

• Material: Copper
• Domestic/Import: Domestic

Technical Specifications

• Nominal Size: 1/2 in
• Pressure Rating: 720 psi
• Temperature Rating: -20 to 100 deg F
• Fitting Type: Adapter
• Series: 103
• End Style: C x FNPT
• Standards/Approvals: ASME/ANSI B16.22 | MSS SP104
