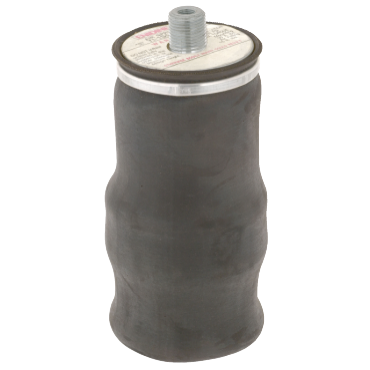

Enidine Inc. YI-1S4-007 Single Convolute Sleeve Type Air Spring

Product Description

Enidine Inc. YI-1S4-007 is a single convolute sleeve type air spring designed for actuation and vibration isolation. This air spring features durable construction using fabric-reinforced Neoprene or Natural Rubber, ensuring reliability across various applications. It supports both linear and angular motions, making it suitable for tasks that require efficient operation.

• Maximum diameter of four point six inches
• Stroke length is four point nine inches
• Compressed height of two point two inches

Product Highlights

This air spring is effective in reducing vibration and can be utilized in applications such as palletizers, conveyor systems, and commercial laundry machines. Its robust design minimizes wear and provides long-lasting performance.

Product Information

Standard Information

• Brand: Enidine Inc.
• MPN: YI-1S4-007

Technical Specifications

• Air Inlet: 1/8 in
• Pressure Max: 100 psi
• Temperature Range Max: 150 °F
• Compressed Height: 2.2 in
• Force at 1 in Stroke: 850 lbf
• Force at 2 in Stroke: 820 lbf
• Force at 3 in Stroke: 830 lbf
• Style No.: YI-1S
• Bellows Type: Shaped Sleeve
• Lower End Plate Diameter: 4.1 in
• Upper End Plate Diameter: 4.1 in
• Recommended Isolator Design Height Max: 4.400 in
• Recommended Isolator Design Height Min: 3.800 in
• Weight: 1.9 lb
