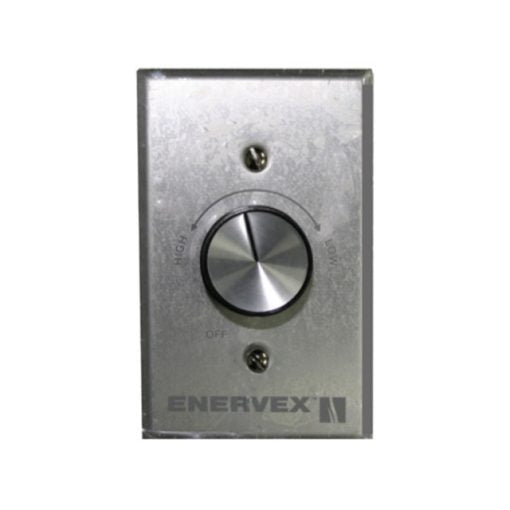

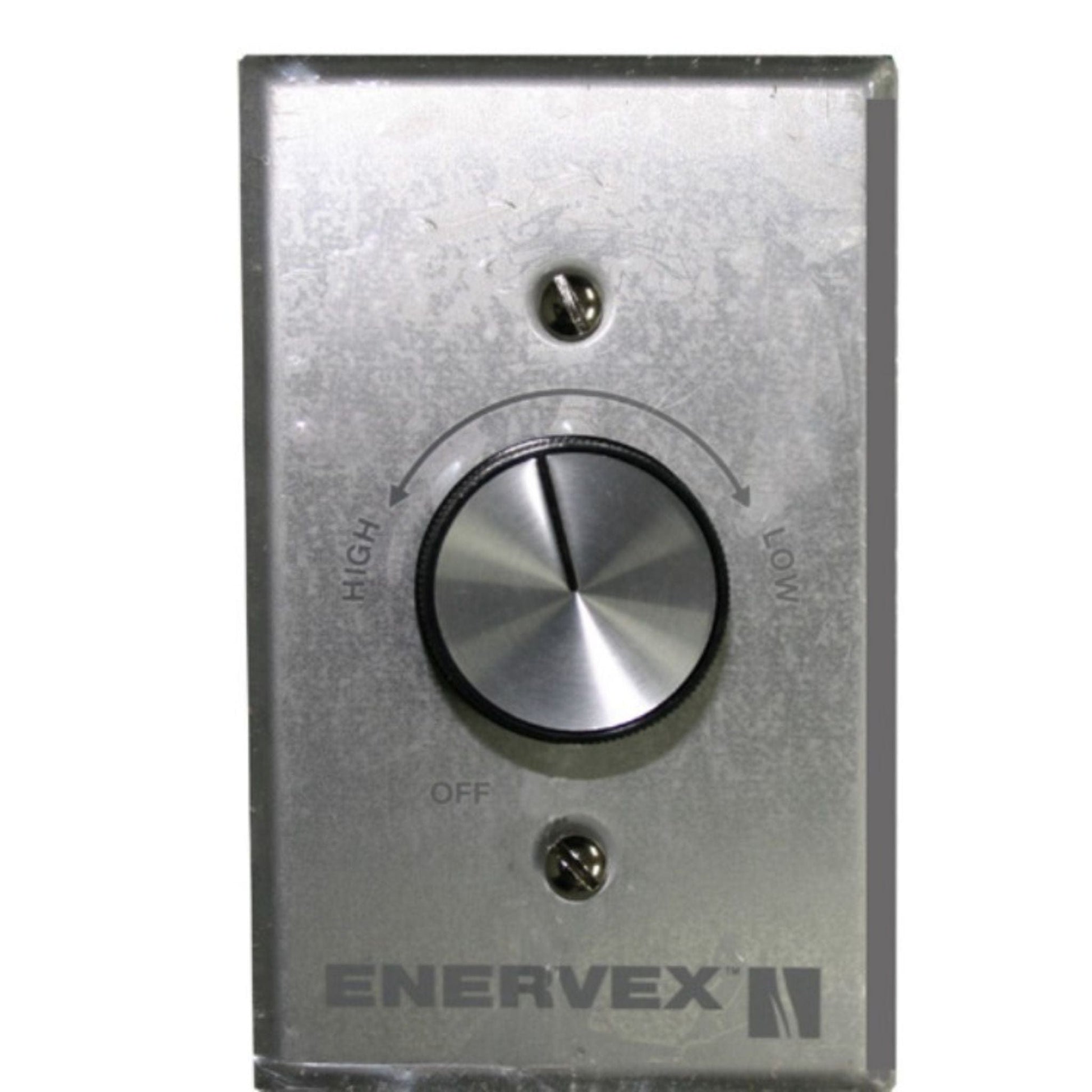

Enervex 301.0105.1200 5A Fan Speed Control

Product Description

The Enervex 301.0105.1200 Fan Speed Control (FSC) controls the speed of single-phase RS, RSV, GSV, RSHT fans, and ventilators. Designed to vary the speed of split-capacitor motors by reducing the line voltage, the FSC allows the fan to use only the energy required to maintain the desired airflow. It is suitable for use with all fans except RSV 016, RSV 315, GSV 016, and GSV 315.

• Controls the speed of single-phased RS, RSV, GSV, RSHT fans and ventilators
• Designed to allow a user to vary the speed of split-capacitor motors
• Works by reducing the line voltage to the motor

Product Highlights

The Enervex Fan Speed Control is designed to control single phase, variable speed motors and allows the fan to use only the energy required.

Product Information

Standard Information

• Brand: Enervex
• Manufacturer Part Number: 301.0105.1200

Technical Specifications

• Item Number: 301.0105.1200
• Maximum Load: 5 Amps
• Voltage: 1 x 120 V AC, 60 Hz
• Switch Control: Rotary ON/OFF
• Material: Silver alloy contacts
• Use with: All fans, except: •RSV 016 • RSV 315 • GSV 016 • GSV 315
• Listings: •UL378 Standard for Draft Equipment •UL508 Standard for Industrial Controls
• Note: The RSV and GSV 400 and 450 operate with 3-phase voltage and cannot be controlled with this kind of fan speed control.
• Brand: Enervex
• Rec. use: Motor Speed Control
• Compatibility: Exhausto
• Works with: chimney fans
• Switch: Rotary ON/OFF / Silver Alloy Contacts
