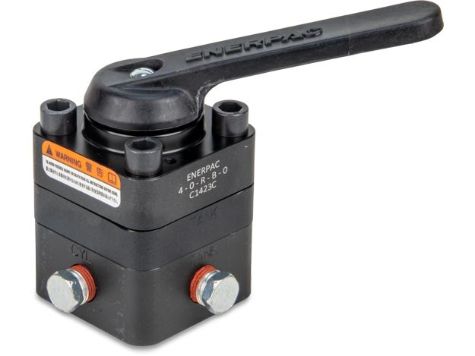

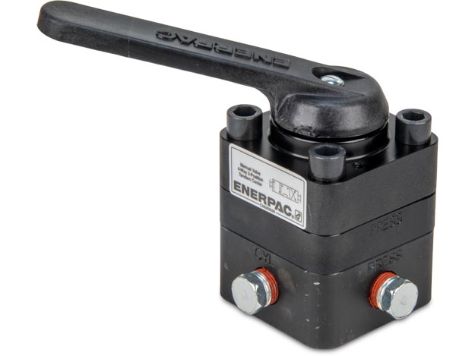

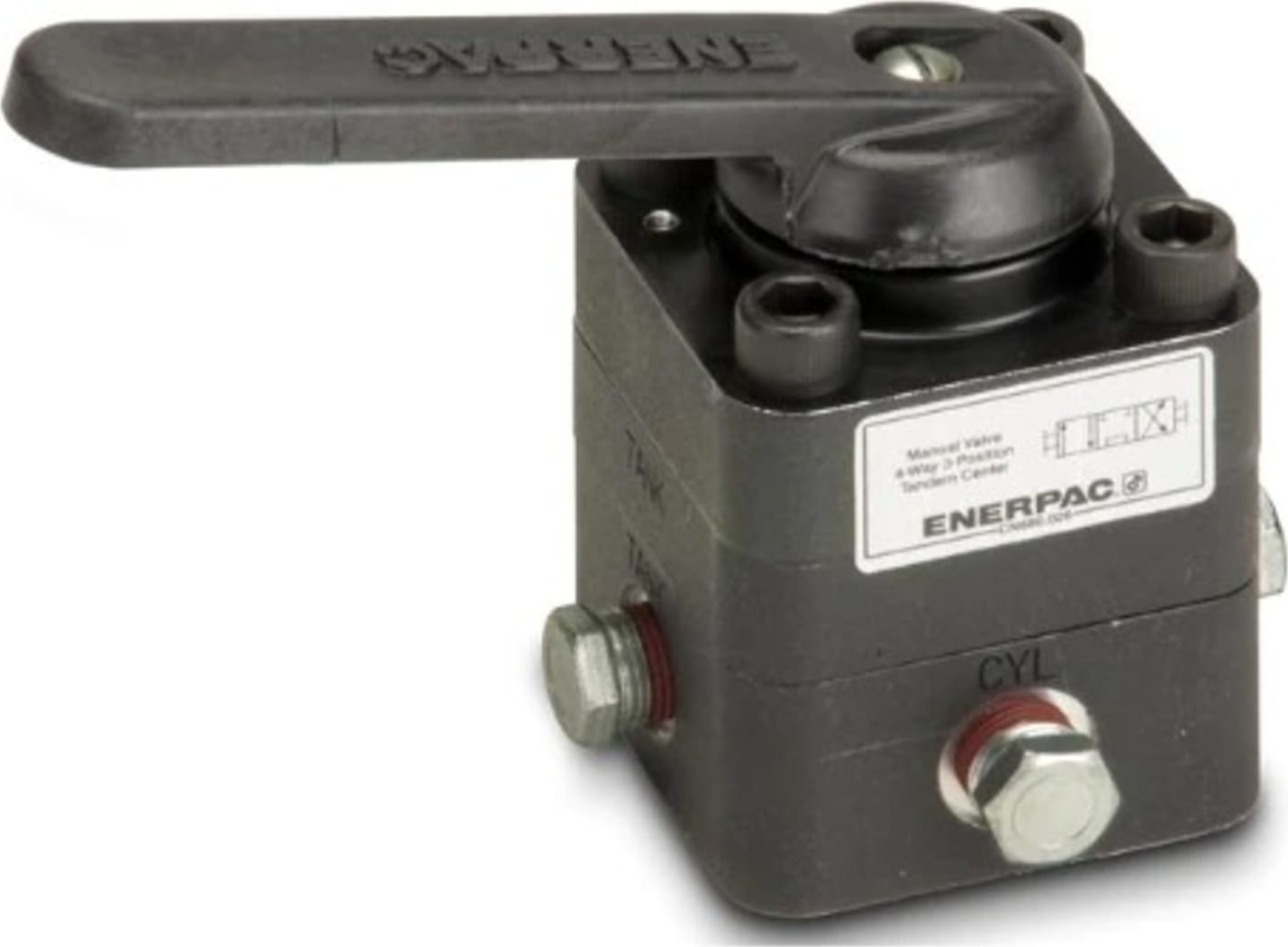

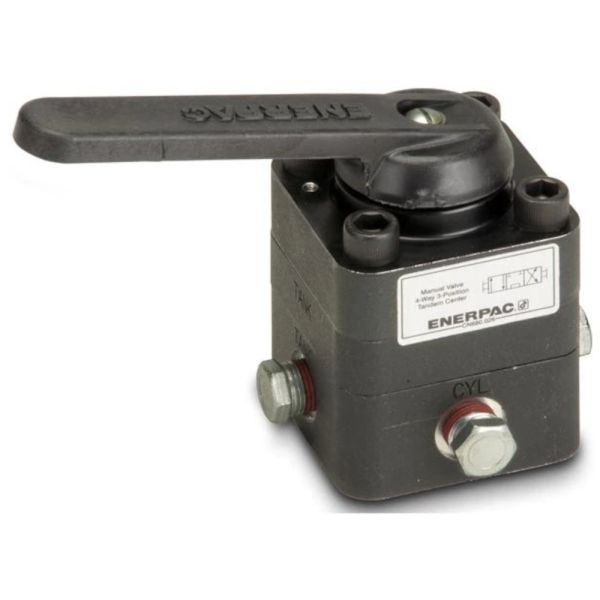

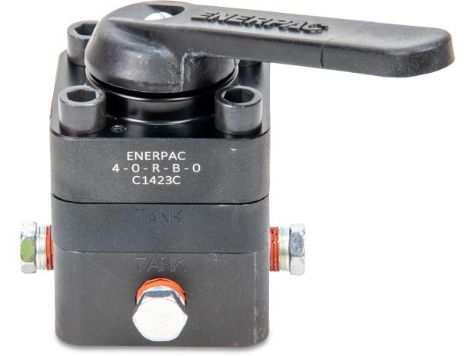

Enerpac VC-4 4-Way Directional Control Valve Remote Mounted (Each)

Product Description

Enerpac VC-4 is a remote-mounted 4-way directional control valve used for hydraulic cylinder control. The manual, 3-position tandem center valve provides advance, hold and retract functions and is rated to 10,000 psi (700 bar). It supports flow up to 4.5 gal/min (17 L/min) and is intended for use with hydraulic cylinders in remote-mounted installations.

• Valve type: 4-way, 3-position with tandem center; manual operation
• Maximum operating pressure: 10,000 psi (700 bar); flow capacity 4.5 gal/min (17 L/min)
• Function: advance / hold / retract; optional pilot-operated check valve for positive load holding

Product Highlights

Remote-mounted 4-way, 3-position manual hydraulic valve rated to 10,000 psi with 4.5 gal/min flow capacity

Product Information

Standard Information

• Brand: ENERPAC
• Manufacturer Part Number: VC-4
• Country of Origin: United States

Technical Specifications

• Brand: Enerpac
• MPN: VC-4
• Part Number: 100190188
• Model: VC-4
• Valve Type: 4-way, 3-position
• Center: Tandem center
• Operation: Manual
• Mounting Type: Remote mounted
• Function: Advance / Hold / Retract
• Maximum Operating Pressure: 10,000 psi (700 bar)
• Flow Capacity: 4.5 gal/min (17 L/min)
• Cylinder Compatibility: Double-acting
• Optional Feature: Pilot-operated check valve available for positive load holding
• Weight: 7.4 lb
• Country of Origin: United States
