Enerpac SC20HTBW Hydraulic MRO Wheeled Toolbox Set 20-Ton (4 Cylinders)

Product Description

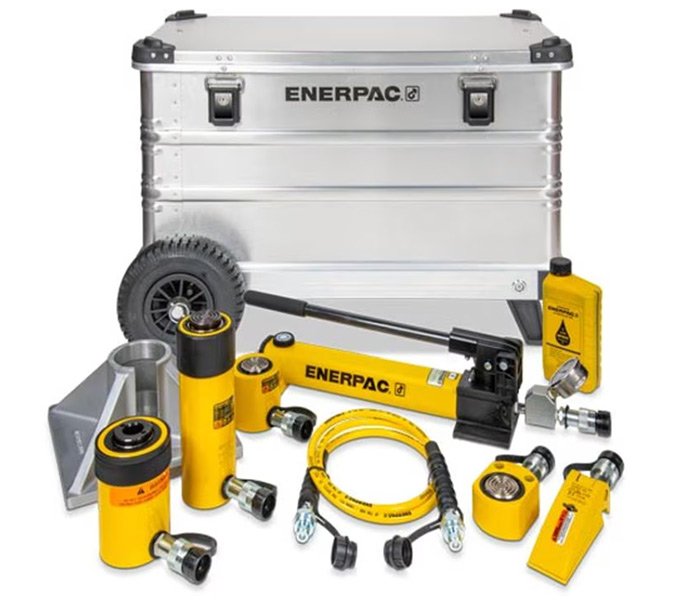

Enerpac SC20HTBW is a hydraulic MRO wheeled toolbox set that provides portable lifting, pushing, and pulling capability up to 20 tons. The kit contains multiple cylinders (general-purpose, low-height, hollow plunger, and spread), a two-speed P392 hand pump, HC7206C high-pressure hose, GA45GC gauge adaptor, HF100 hydraulic oil, JBI25 base plate and an industrial-strength aluminum wheeled container. Maximum operating pressure is 10,000 psi and stroke range is 0.50–6.25 in (12–158 mm); weight about 126 lb.

• Maximum operating pressure: 10,000 psi (700 bar); stroke range 0.50–6.25 in (12–158 mm)
• Includes multiple cylinder types and parts: RC256, RCS201, RSM200, RCH202, WR5 plus P392 pump and HC7206C hose
• Industrial-strength wheeled aluminum container with base plate (JBI25) for organized storage and transport

Product Highlights

Portable 20-ton hydraulic set with four cylinder types, two-speed hand pump, and 10,000 psi maximum pressure.

Product Information

Standard Information

• Brand: ENERPAC
• Manufacturer Part Number: SC20HTBW
• Country of Origin: United States

Technical Specifications

• Brand: Enerpac
• MPN: SC20HTBW
• Series: SCTB
• Set Type: Maintenance, Repair & Operation (MRO) wheeled toolbox set
• Capacity (rated): 20 Ton
• Max Operating Pressure: 10,000 psi (700 bar)
• Stroke Range: 0.50 - 6.25 in (12 - 158 mm)
• Weight: 126.0 lb
• EAN/UPC: 662005444120
• Contents: Wheeled aluminum toolbox, multiple hydraulic cylinders, two-speed hand pump, high-pressure hose, gauge adaptor, hydraulic oil, base plate
• Pump Type: Two-speed lightweight hand pump
• Pump Part Number: P392
• Hose Part Number: HC7206C
• Hose Length: 6 ft
• Hose Internal Diameter: 0.25 in
• Gauge Adaptor Part Number: GA45GC
• Hydraulic Oil: HF100, 1 quart
• Base Plate Part Number: JBI25
• Included Cylinders: RC256 (general-purpose, 25.8 ton, 6.25 in stroke); RCS201 (low-height, 22.1 ton, 1.75 in stroke); RSM200 (low-height, 22.1 ton, 0.50 in stroke); RCH202 (hollow plunger, 23.6 ton, 2.00 in stroke); WR5 (wedgie/spread, 1.00 ton, 3.7 in spread)
• Cylinder Types: General-purpose, low-height, hollow plunger, spread (wedgie)
• Storage Box Dimensions: 31.5 in x 22 in x 21.75 in
• Prop 65: Yes
