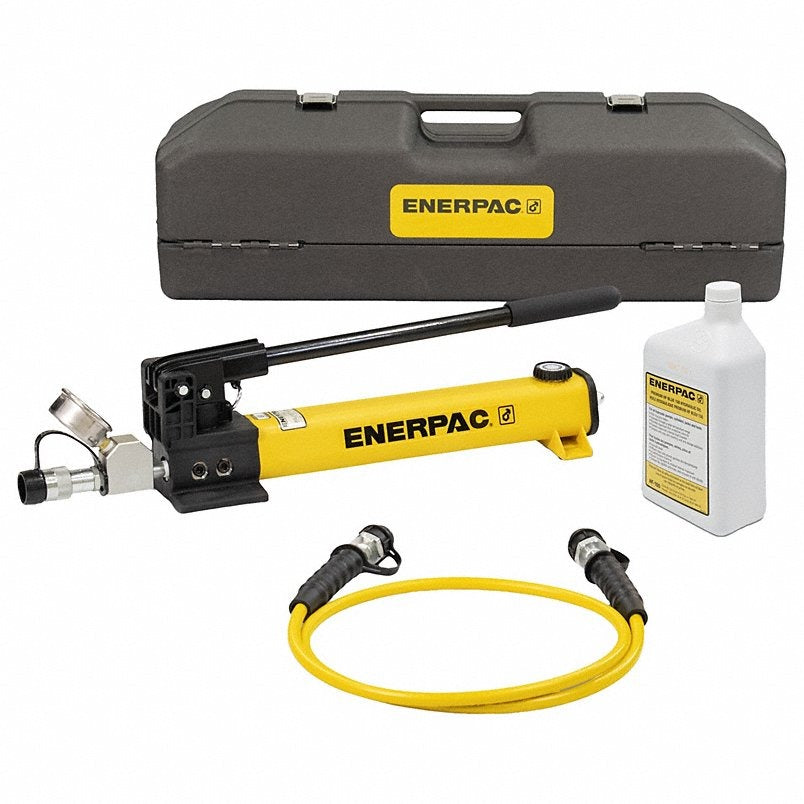

Enerpac sc00htb Hand Pump System Components Toolbox Set

Product Description

The ENERPAC sc00htb is a complete hand pump and system components toolbox set designed for industrial hydraulic maintenance applications. The set is built around the SC series cylinder lineup and includes everything a hydraulic technician needs to assemble and operate a basic hydraulic circuit in the field or shop. Rated to a maximum working pressure of 10,000 psi, this toolbox set pairs a two-speed lightweight hand pump with compatible hose, gauge adaptor, coupler, and hydraulic oil, reducing the need to source components separately. It is used by industrial maintenance crews, mechanical contractors, and hydraulic service technicians.

This set is suited for industrial maintenance environments where portable hydraulic power is needed. The included P392 hand pump delivers two-speed operation, allowing faster cylinder advance at low load and precise control at high pressure. The 6-foot thermoplastic high-pressure hose with 1/4 inch internal diameter connects the pump to the cylinder, while the 45-degree angled gauge adaptor provides convenient pressure monitoring in tight spaces. The Male Half High Flow coupler and quart of HF hydraulic oil round out the kit for immediate use on arrival.

Key Features

• Maximum working pressure of 10,000 psi for demanding industrial hydraulic tasks
• Includes P392 two-speed lightweight hydraulic hand pump for efficient cylinder actuation
• 6-foot thermoplastic high-pressure hydraulic hose with 1/4 inch internal diameter (HC7206C)
• GA45GC 45-degree angled gauge adaptor assembly for pressure monitoring in confined areas
• CH604 Male Half High Flow hydraulic coupler included for quick-connect hookup
• HF100 one-quart HF hydraulic oil included, formulated for powered pump systems

Compatibility

Designed for use with ENERPAC SC series cylinders. Component model numbers included in this set are P392, CH604, GA45GC, HC7206C, and HF100. Verify cylinder port thread type and coupler compatibility before assembly.

Installation Notes

Installation and service of high-pressure hydraulic systems should be performed by qualified hydraulic technicians familiar with industrial fluid power equipment. Depressurize the system completely before connecting or disconnecting hose fittings or couplers. Inspect all hose connections and fittings for damage before applying pressure. Do not exceed the rated 10,000 psi maximum working pressure of the system components.

Technical Specifications

• Maximum Pressure: 10,000 psi
• Maintenance Set Type: Industrial
• Cylinder Series: SC
• Pump Type: Hand
• Pump Model Number: P392
• Hose Length: 6 feet
• Hose Internal Diameter: 1/4 inch
• Hydraulic Oil: HF100 1-quart HF Hydraulic Oil
• Country of Origin: China (subject to change)

Standard Information

• Brand: ENERPAC
• Manufacturer Part Number: sc00htb
