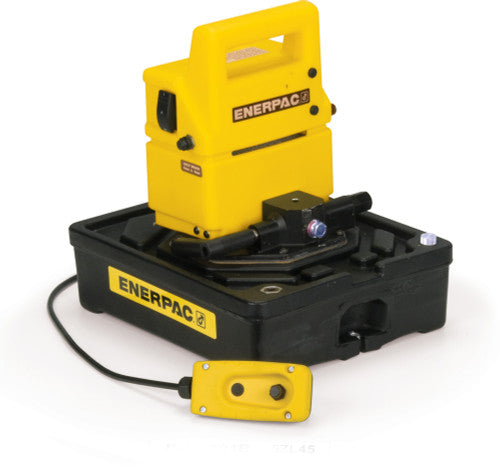

Enerpac PUJ-1201B Intermittent Duty Single-Acting Hydraulic Pump 0.5 Hp (1 gal)

Product Description

Enerpac PUJ-1201B is an intermittent duty, two-speed electric hydraulic pump designed to power small to medium single-acting cylinders and hydraulic tools. It features a 115 VAC 50/60 Hz universal motor (0.5 Hp, 9.5 A), an integrated 3-way manual valve, and a 1 gallon (3.8 L) usable oil reservoir. The unit provides a high-pressure second stage up to 10,000 psi (700 bar) and a high-flow first stage for rapid advance.

• Two-speed universal motor: 115 VAC, 50/60 Hz, 0.5 Hp, 9.5 A; starts under full load
• Reservoir and flow: 1 gal (3.8 L) usable oil; first-stage flow 200 in3/min and second-stage flow 20 in3/min; rated flow at pressure 20 in3/min
• Controls and duty: integrated 3-way manual valve, 10 ft pendant cord for motor control, 24 VAC remote motor control available; intermittent duty

Product Highlights

Two-speed 115 VAC electric pump with 1 gal usable reservoir, integrated 3-way valve, and dual-stage flow/pressure capability up to 10,000 psi.

Product Information

Standard Information

• Brand: ENERPAC
• Manufacturer Part Number: PUJ-1201B
• Country of Origin: United States

Technical Specifications

• Brand: Enerpac
• MPN: PUJ-1201B
• Model: PUJ-1201B
• Series: PU
• Product Type: Electric hydraulic pump
• Pump Type: Two-speed economy electric hydraulic pump
• Cylinder Compatibility: Single-Acting
• Motor Power: 0.5 Hp
• Input Voltage: 115 VAC
• Frequency: 50/60 Hz
• Amps: 9.5 A
• Motor Type: Universal motor
• Speed: Two speed
• Starts Under Load: Yes
• Usable Oil Capacity: 1 gal (3.8 L)
• Reservoir Capacity: 231 in3 (3800 cm3)
• Flow Rate First Stage: 200 in3/min
• Flow Rate Second Stage: 20 in3/min
• Flow Rate at Rated Pressure (Max): 20 in3/min (0.32 L/min)
• Pressure Rating First Stage: 200 psi (13 bar)
• Pressure Rating Second Stage: 10,000 psi (700 bar)
• Maximum Operating Pressure: 10,000 psi (700 bar)
• Valve Type: 3-way, 2-position (3/2 manual valve)
• Valve Function: Advance, Hold, Retract
• Valve Operation: Manual
• Pump Power Source: Electric
• Pump Control: Pendant (10 ft cord); 24 VAC remote motor control available
• Duty Cycle: Intermittent
• Cord Length: 10 ft
• Sound Level: 85 dBa
• Weight: 39.0 lb
• Series Name: PU Series
• UPC: 662005106578
• EAN: 0662005106578
