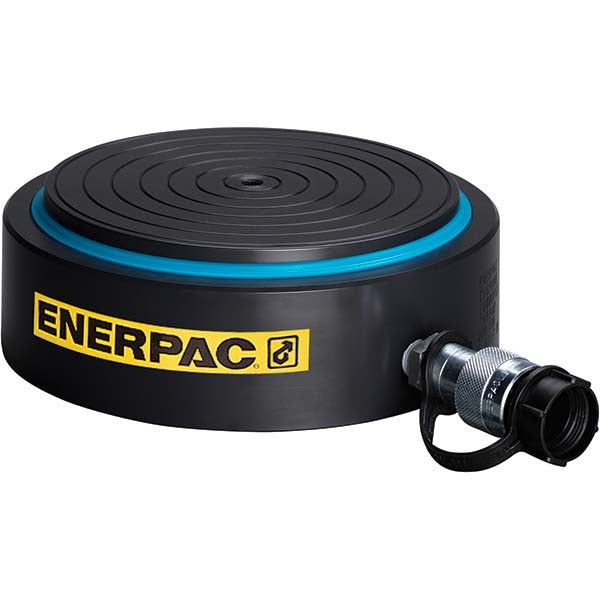

Enerpac CUSP30 Compact Hydraulic Cylinder Steel

Product Description

The ENERPAC CUSP30 is a compact, single-acting hydraulic cylinder built with a steel body for use in tight-clearance hydraulic applications. Single-acting design means hydraulic pressure extends the ram while a spring or external load returns it, keeping the unit compact and suitable for installations where space is limited. At 6 pounds, it is lightweight enough for portable setups while maintaining the structural integrity expected from a steel-body cylinder. This cylinder is typically installed by hydraulic technicians, millwrights, or industrial maintenance professionals working with low-clearance pressing, lifting, or holding applications.

The CUSP30 supports both horizontal and vertical mounting orientations, giving technicians flexibility when fitting the cylinder into existing frames, fixtures, or custom tooling setups. Its compact profile makes it well-suited for maintenance, repair, and production tooling environments where full-size cylinders cannot be accommodated. The steel construction handles the demands of industrial shop environments and repeated service cycles.

Key Features

• Single-acting actuation: hydraulic pressure extends the ram; return is spring- or load-assisted
• Steel body construction for durability in industrial service environments
• Supports both horizontal and vertical mounting orientations
• Compact form factor designed for tight-clearance applications
• Lightweight at 6 pounds for portable or field use

Compatibility

Designed as an OEM-style replacement or service cylinder for compact single-acting hydraulic systems requiring horizontal or vertical mounting in steel-body configurations.

Installation Notes

Installation should be performed by a qualified hydraulic technician or millwright familiar with hydraulic circuit safety. Before servicing or installing, relieve all system pressure and ensure the hydraulic power unit is locked out and de-energized. Verify that all port fittings, mounting hardware, and rated load values are appropriate for the application before pressurizing the system. Follow applicable ASME and hydraulic safety standards for cylinder mounting and hose connection procedures.
