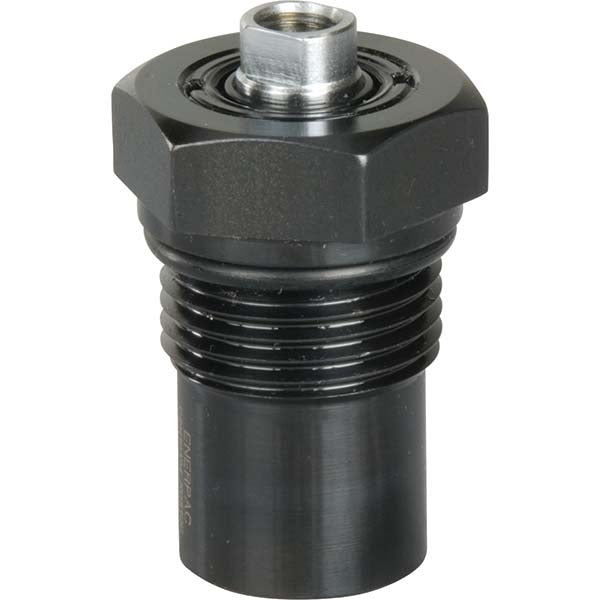

Enerpac CSM10131 Compact Hydraulic Cylinder Steel

Product Description

The ENERPAC CSM10131 is a single-acting compact hydraulic cylinder constructed with a steel body. It is designed for high-force linear actuation in tight-clearance applications where a standard-profile cylinder cannot fit. Single-acting design means hydraulic pressure extends the ram while a spring or external load returns it to the retracted position. The steel body provides durability under load in demanding industrial and maintenance environments. Weighing 1.3 pounds, this cylinder is a lightweight option for portable hydraulic tooling setups. Installation is handled by hydraulic technicians and mechanical tradespeople working with hydraulic power units and hand pumps.

The CSM10131 is suited for horizontal and vertical mounting configurations, making it adaptable to a wide range of pressing, lifting, clamping, and pushing tasks. Its compact form factor is particularly useful in confined spaces such as machinery frames, fabrication fixtures, and maintenance jigs. The 7/16-20 port size is compatible with standard hydraulic fittings used in low-profile cylinder circuits. Both field service and shop applications are common use cases for this cylinder.

Key Features

• Single-acting actuation: hydraulic pressure extends, spring or load retracts
• Steel body construction for durability under repeated load cycles
• Supports horizontal and vertical mounting orientations
• 7/16-20 hydraulic port for compatibility with standard fittings
• Compact profile designed for tight-clearance installations
• Lightweight at 1.3 pounds for portable and field use

Compatibility

Designed as an OEM-style replacement compact hydraulic cylinder for use with hydraulic hand pumps and power units that supply compatible pressure and flow through a 7/16-20 port connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Before servicing or connecting the cylinder, depressurize and bleed the hydraulic circuit completely. Ensure all fittings are rated for the operating pressure of the system before connecting at the 7/16-20 port. Do not exceed the rated capacity or stroke of the cylinder, and verify that the mounting orientation matches the design load path before pressurizing.
