Enerpac AM2-1 Manifold Split-Flow Valve

Product Description

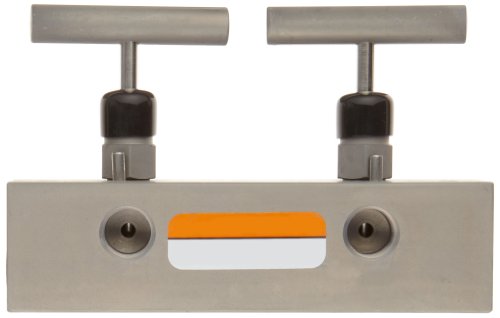

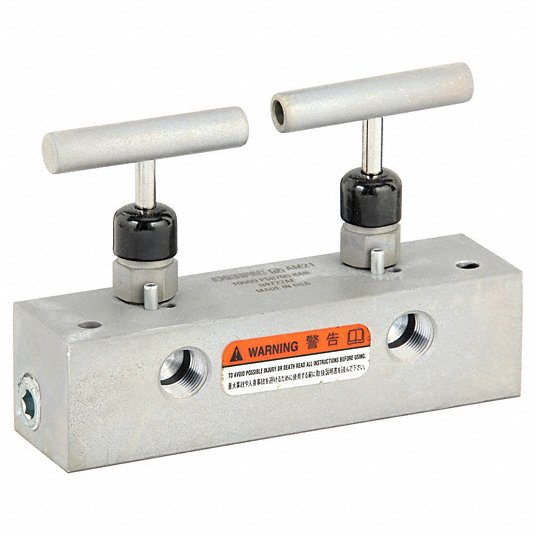

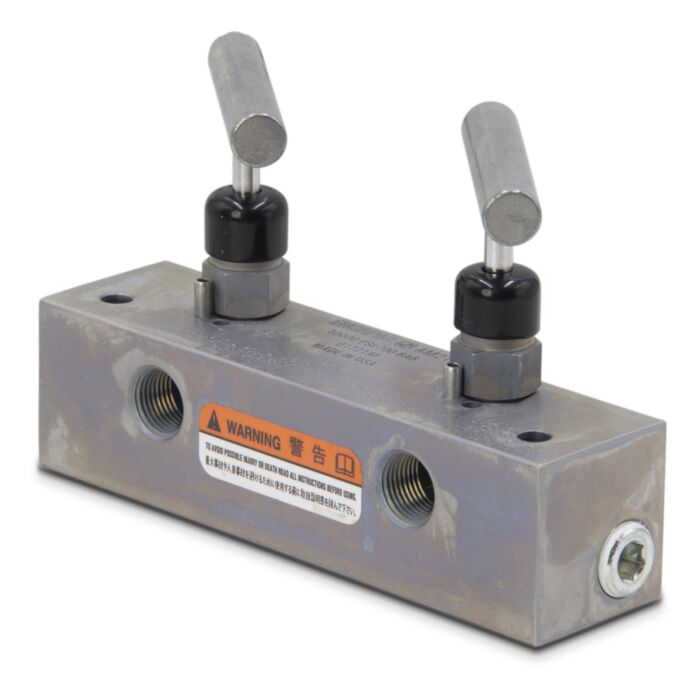

The ENERPAC AM2-1 manifold functions as a split-flow valve to control two single-acting cylinders simultaneously. It is designed to direct fluid flow from a single inlet port to multiple outlet ports. Flow for each individual outlet is manually controlled using an integrated needle valve handle. All ports are 3/8"-18 NPTF.

• Functions as split-flow valve to control single-acting cylinders simultaneously
• Handle used to open and close each port
• Easy to connect

Product Highlights

This premounted manifold features mounting holes and is easy to connect. It has a maximum operating pressure of up to 10,000 psi (700 bar).

Product Information

Standard Information

• Brand: ENERPAC
• Manufacturer Part Number: AM2-1
• Country of Origin: USA

Technical Specifications

• Number of Inlet Ports: 1
• Number of Outlet Ports: 2
• Number of Regulated Outlet Ports: 2
• Oil Ports: 3/8" NPTF
• Maximum Operating Pressure (psi): 10,000
• Alternate Part Number: AM-21
• Brand: ENERPAC
• Maximum Pressure: 10,000 psi
• Manufacturer Part Number: AM21
• Overall Length: 6 in
• Overall Width: 1.625 in
• Overall Height: 3.875 in
• Number of oil ports: 2
• Oil port connection NPTF: 3/8"
• Length: 6"
