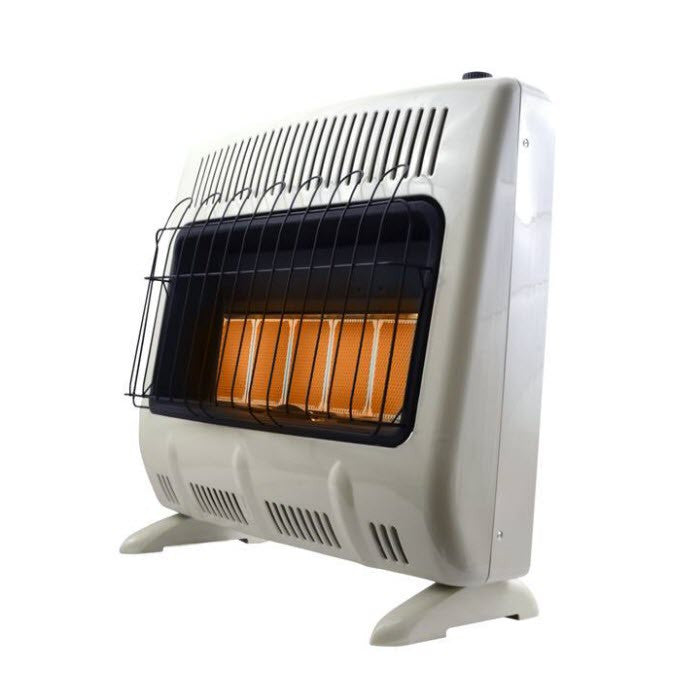

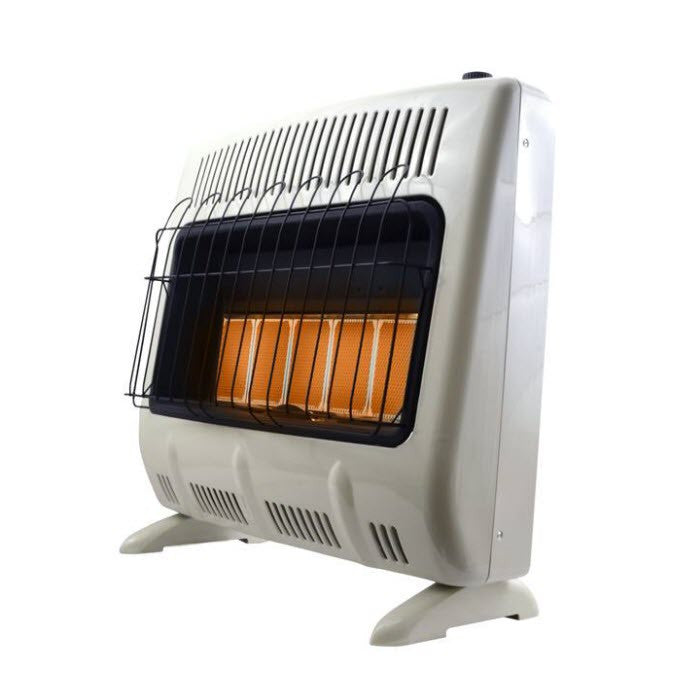

Enerco HSSVFRD30LPBT Vent Free Radiant Heater 30000 Btu

Product Description

The ENERCO HSSVFRD30LPBT is a 30,000 BTU/h vent-free infrared radiant heater designed for liquid propane operation. It delivers heat through electromagnetic radiation, warming objects and surfaces in the space rather than simply heating the air. The unit draws 185 CFM through an included blower fan and features electronic push-button ignition with thermostatic control. A built-in low-oxygen shutoff sensor (ODS) provides automatic safety protection. CSA and ANSI certified, this heater is suited for installation by qualified gas technicians in residential and light commercial supplemental heating applications.

The HSSVFRD30LPBT is rated to supplement heat in spaces up to approximately 750 square feet. It is well suited for uninsulated or semi-conditioned spaces such as garages, workshops, and unfinished basements where radiant heat is effective regardless of air circulation. Both a wall-mount bracket and base feet are included, allowing floor or wall installation. The unit runs on liquid propane and continues to produce radiant heat during power outages, though the blower will not operate without electrical power. A natural gas version is available under model HSSVFRD30NGBT.

Key Features

• 30,000 BTU/h infrared radiant output rated at 99.9% thermal efficiency
• Included blower fan rated at 185 CFM for enhanced heat distribution
• Five-setting thermostatic control knob cycles burner on and off to maintain set temperature
• Electronic push-button ignition powered by included AA batteries
• Built-in oxygen depletion sensor (ODS) shuts off burner if oxygen levels drop
• Wall-mount bracket and floor-stand feet included for flexible installation
• Operates on liquid propane without electricity, maintaining heat during power outages

Compatibility

Designed for use with liquid propane gas supply systems. A compatible natural gas version is available as model HSSVFRD30NGBT. Not available for sale or shipment to the state of California.

Installation Notes

Installation must be performed by a licensed gas technician in accordance with the National Fuel Gas Code (NFPA 54) and all applicable local codes. Shut off the propane supply at the tank or service valve before connecting or disconnecting any gas fittings. Minimum required clearances are 36 inches above the unit to the ceiling, 3 inches below the unit to the floor when using base feet, and 10 inches to either side wall. For wall-mount installations, a mounting height of 36 inches from the floor is recommended for accessibility and clearance compliance.

Technical Specifications

• Heating Capacity: 30,000 BTU/h
• Fuel Type: Liquid Propane (LP)
• Flame Type: Infrared / Radiant
• Blower CFM: 185
• Ignition Type: Electronic
• Control Type: Thermostatic (5-setting)
• Gas Connection Size: 0.5 inches
• Manifold Pressure: 4.5 inches w.c.
• Inlet Gas Pressure (Min.): 11 inches w.c.
• Inlet Gas Pressure (Max.): 14 inches w.c.
• Venting: Vent Free
• Installation Type: Floor or Wall Mount
• Clearance - Top to Ceiling: 36 inches
• Clearance - Bottom to Floor: 3 inches (minimum, to top of carpet)
• Clearance - Side Wall: 10 inches
• Width: 28 inches
• Depth: 8 inches
• Height: 24 inches
• Net Weight: 30 pounds
• Certifications: CSA, ANSI

Standard Information

• Brand: ENERCO
• Manufacturer Part Number: HSSVFRD30LPBT
