Encore Wire 381253501540 Wesleyan U/G Al Triplex 600 VAC 500 ft

Product Description

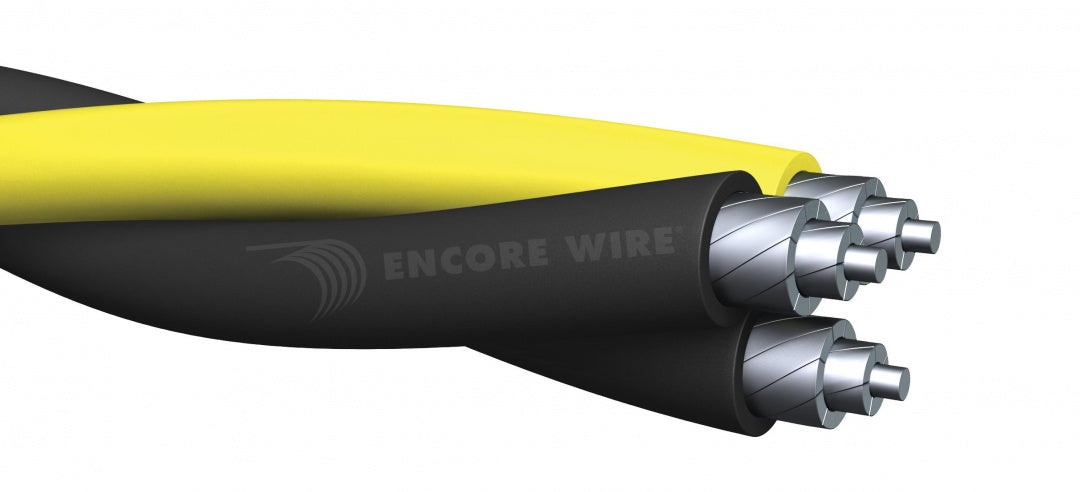

The Encore Wire 381253501540 is an underground distribution cable, triplex, with reel packaging. It operates at 600 VAC with a 431 A amperage rating. The cable features 3 stranded aluminum conductors, each with a 350 kcmil conductor size, and a length of 500 ft. Suitable for energy distribution applications.

• Features compact stranded aluminum alloy 1350 series per ASTM-B230, ASTM-B231, ASTM-B609 and ASTM-B836
• Cross-linked polyethylene (XLPE) insulation per UL-854 and ANSI/ICEA S-105-692, black XLPE insulation or phase conductors, yellow XLPE insulation or grounded (neutral) conductor
• Compliant with RoHS and REACH standards

Product Highlights

This triplex underground distribution cable is designed for 600 VAC operation and features stranded aluminum conductors with XLPE insulation.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 381253501540
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 431 A
• Conductor Size: 350 kcmil
• Conductor Type: Stranded Aluminum
• Insulation Material: Polyethylene
• Jacket Color: Black/Yellow
• Length: 500 ft
• Number of Conductors: 3
• Outside Diameter: 0.806 in
• Packaging Type: Reel
• Strands: 24
• Temperature Rating: 90 deg C
• Type: Triplex
• Voltage Rating: 600 VAC
• Mfg Standards/Approvals: UL File E-174428, RUS Accepted, Reach, RoHS Compliant
• Product Height: 24.50"
• Product Width: 42.00"
• Product Length: 42.00"
• Electrical Category: Wire And Cable
• Electrical Subcategory: Electrical Cable
• Conductor Material: Aluminum
• RoHS Compliance: Yes
• UNSPSC: 26121661
