Encore Wire 118101205440 Green Strd 6 Cop Thhn

Product Description

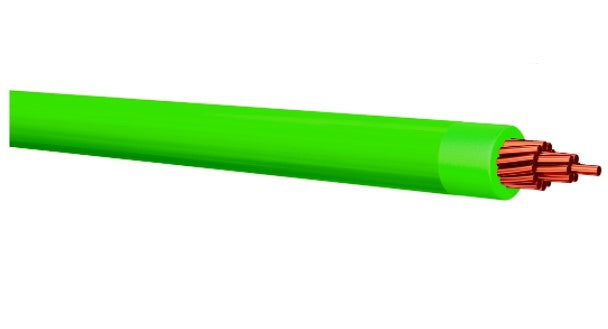

Encore Wire 118101205440 is a green stranded 6 AWG copper THHN wire. Type THHN/THWN-2 building wire is for general purpose applications as defined by the National Electrical Code (NEC). It is permitted for new construction or rewiring for 600-volt applications and is appropriate for use in wet or dry locations at temperatures not exceeding 90 C.

• Slick Nylon outer jacket for easy pulling.
• Rated gasoline and oil resistant II.
• Sunlight Resistant in all colors.

Product Highlights

The Encore Wire THHN wire is suitable for new construction or rewiring and can be used in both wet and dry environments.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 118101205440
• Country of Origin: USA

Technical Specifications

• Manufacturer: ENCORE WIRE
• Conductors: Solid, uncoated copper conductors per ASTM-B3; Stranded, uncoated copper conductors per ASTM-B3, ASTM-B787 and ASTM-B8
• Insulation: Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compound per UL-1063 and UL-83
• Standards: Underwriters Laboratories Standards UL-83, UL-1063, UL-758, AWM Spec 1316, 1317, 1318, 1319, 1320, 1321; ASTM Stranding Class B3, B8, B787, Federal Specification A-A-59544; Canadian Standards Association C22.2 No. 75, NEMA WC70/ICEA S-95-658; UL 1685-FT4/IEEE 1202 (70,000 Btu/hr) Flame Test (1/0 AWG and larger); ICEA T-29-520 (210,000 Btu/hr) Flame Test, ARRA 2009; Section 1605 \"Buy American\" Compliant
• Electrical Category: Wire And Cable
• Electrical Subcategory: Electrical Cable
• Conductor Material: Copper
• Conductor Size: 6
• Country Of Origin: USA
• Number Of Conductors: 1
• RoHS Compliance: Yes
• Stock Type: Shelf Stock
• UNSPSC: 26121614
