Encore Wire 118101007440 Copper THHN 8 Stranded 500 ft

Product Description

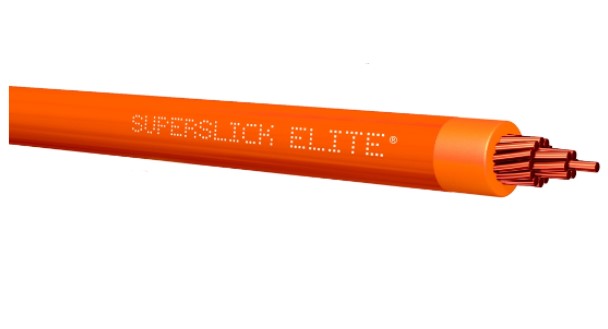

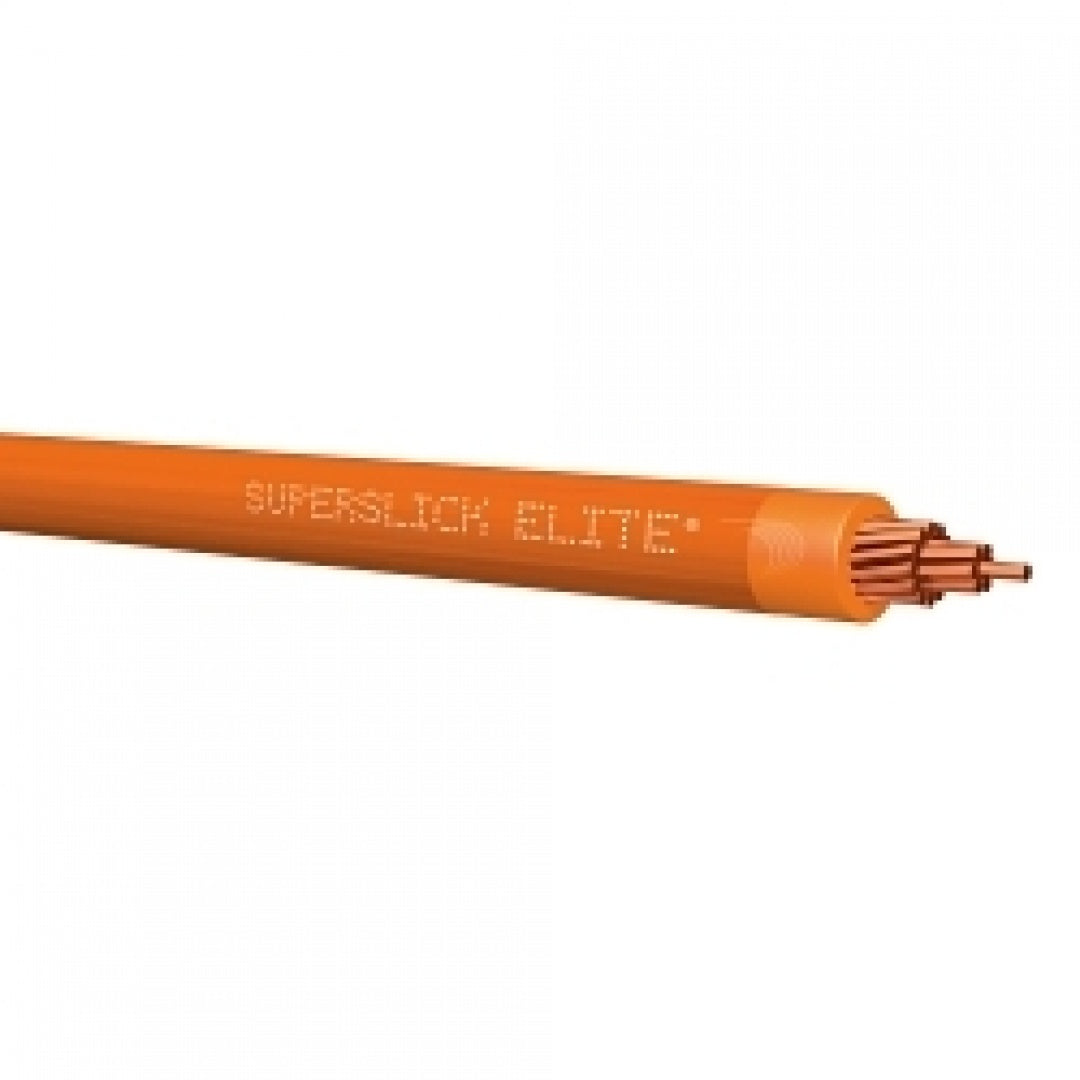

The Encore Wire 118101007440 is a building wire, Type THWN-2, supplied on a reel. This 600 VAC wire features a single 8 AWG stranded copper conductor with PVC insulation and a nylon jacket. It has an outside diameter of 0.213 inches and a 55 A amperage rating and is suitable for commercial applications.

• Features color-coded polyvinyl chloride (PVC) that is heat and moisture resistant and flame retardant.
• Constructed with stranded, uncoated bare copper per ASTM-B3, ASTM-B8 and ASTM-B787.
• Features a tough, polyamide, nylon outer covering per UL-83 and UL-1063.

Product Highlights

This Encore Wire THWN-2 building wire is ideal for various commercial applications, ensuring reliable and safe electrical connections.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 118101007440
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 55 A
• Conductor Size: 8 AWG
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Color: Orange
• Jacket Material: Nylon
• Length: 500 ft
• Number of Conductors: 1
• Outside Diameter: 0.213 in
• Packaging Type: Reel
• Strands: 19
• Temperature Rating: 90 deg C
• Type: Type THWN-2
• Voltage Rating: 600 VAC
• Manufacturer: ENCORE WIRE
• Mfg Standards/Approvals: UL File E-123774, E-156878, E-156879, cUL Listed, Reach, RoHS Compliant
• Application: Commercial
• Conductor Material: Copper
• Standard: UL
